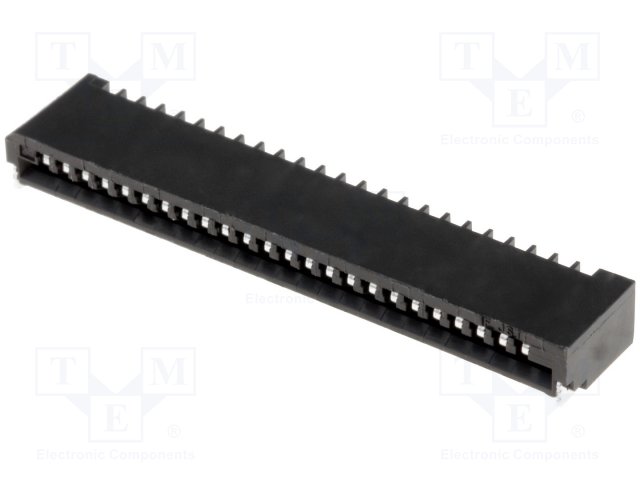

24FMN-SMT-A-TF

Specifications

Height Above Board

0.118 3.00mm

Filter Feature

NO

Connectorcontact Type

Contacts, Top

Çalışma Sıcaklığı

-25°C~85°C

Montaj Tipi

Surface Mount, Right Angle

Housing Material

Polyamide (PA6T), Nylon 6T

Contact Finish

Tin

Housing Color

Black

Iec Conformance

NO

JESD-609 Kodu

e0

Pitch

0.039 1.00mm

Orientation

Horizontal

Ffc Fcb Thickness

0.30mm

Parça Durumu

Obsolete

RoHS Durumu

Non-RoHS Compliant

Yayın Yılı

2005

Kurşunsuz

Contains Lead

Mil Conformance

NO

Total Number Of Contacts

24

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Montaj

Surface Mount

Option

GENERAL PURPOSE

Mixed Contacts

NO

Mating Information

NO

Akım Değeri

500mA

Nominal Gerilim

50V

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Seri

FMN

Current Rating Amps

0.5A

Ul Flammability Code

94V-0

Contact Gender

FEMALE

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

24

Cable End Type

Straight

Din Conformance

NO

Additional Feature

SIDE ENTRY

Lead Pitch

1mm

Kurşunsuz Kodu

no
