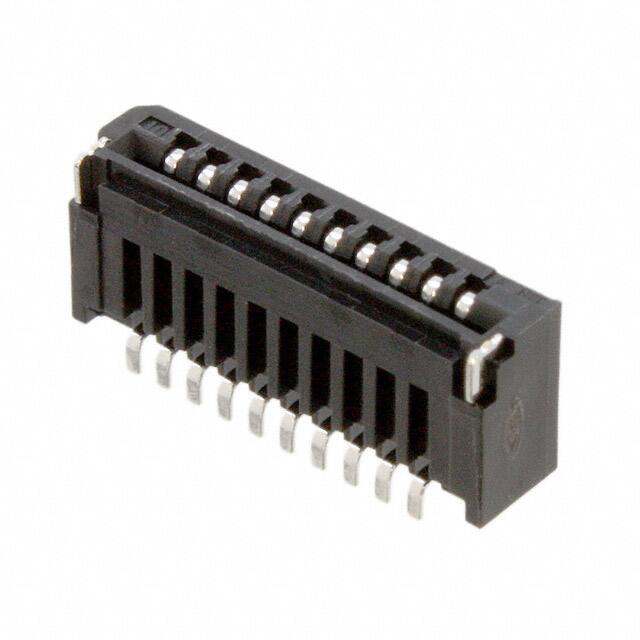

10FMN-SMT-A-TF(LF)(SN)

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Additional Feature

SIDE ENTRY

Yayın Yılı

2010

Montaj

Surface Mount

Height Above Board

0.118 3.00mm

Mating Information

NO

Mixed Contacts

NO

Fabrika Tedarik Süresi

16 Weeks

RoHS Durumu

RoHS Compliant

Flat Flex Type

FFC

Kurşunsuz

Lead Free

Current Rating Amps

0.5A

Din Conformance

NO

Özellikler

Low Insertion Force (LIF)

Material Flammability Rating

UL94 V-0

Reach Svhc

No SVHC

Housing Material

Polyamide (PA6T), Nylon 6T

Pitch

0.039 1.00mm

Çalışma Sıcaklığı

-25°C~85°C

Cable End Type

Straight

Total Number Of Contacts

10

Seri

FMN

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount, Right Angle

Housing Color

Black

Filter Feature

NO

Iec Conformance

NO

Flammability Rating

UL94 V-0

Ffc Fcb Thickness

0.30mm

Nominal Gerilim

50V

Contact Finish

Tin

Pozisyon Sayısı

10

Contact Materials

Phosphor Bronze

Option

GENERAL PURPOSE

Gender

Receptacle

Mil Conformance

NO

Terminal

Solder

Sıra Sayısı

1

Connectorcontact Type

Contacts, Top
