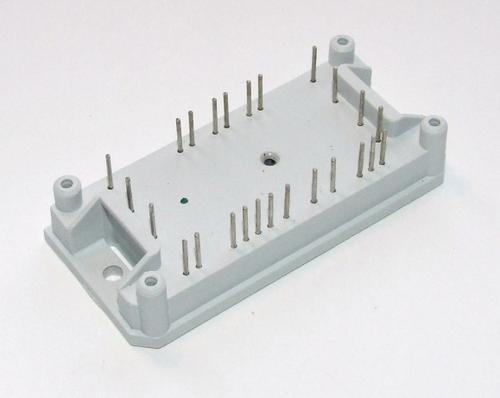

MUBW30-12E6K

Specifications

Input

Three Phase Bridge Rectifier

Montaj Tipi

Chassis Mount

Gateemitter Voltagemax

20V

Temel Parça No

MUBW

Ntc Thermistor

Yes

Terminal Pozisyonu

UPPER

Number Of Elements

7

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-40°C~125°C TJ

Jesd30 Code

R-XUFM-X25

Turn On Time

320 ns

Max Collector Current

30A

Voltage Collector Emitter Breakdown Max

1200V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Reverse Voltage

1.6kV

Montaj

Chassis Mount

Max Power Dissipation

130W

Collectoremitter Breakdown Voltage

1.2kV

Polaritychannel Type

N-CHANNEL

Collector Emitter Voltage Vceo

3.6V

Turn Off Timenom Toff

500 ns

Configuration

Three Phase Inverter with Brake

Additional Feature

UL RECOGNIZED

Power Max

130W

Transistor Element Material

SILICON

Terminal Formu

UNSPECIFIED

Input Capacitance Cies Vce

1.18nF @ 25V

Kılıf / Paket

E1

Terminal Kaplaması

Tin (Sn)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Qualification Status

Not Qualified

Transistor Application

POWER CONTROL

Pin Sayısı

25

JESD-609 Kodu

e3

Case Connection

ISOLATED

Ambalaj

Bulk

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Yayın Yılı

2007

Input Capacitance

1.18nF
