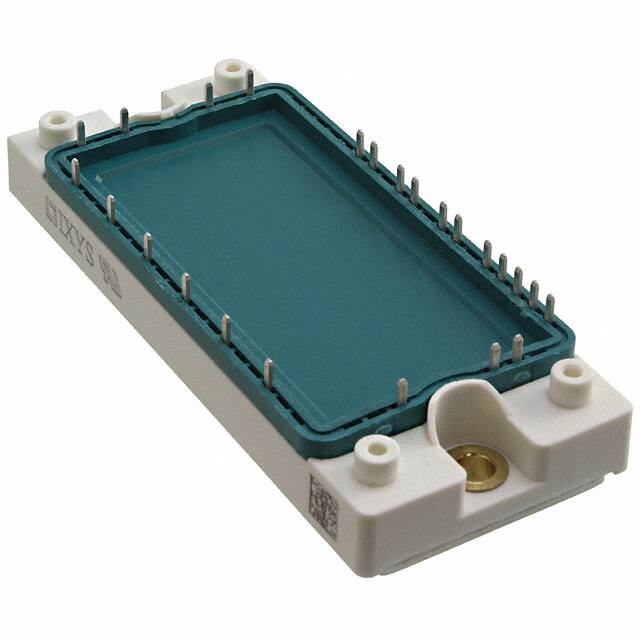

MUBW10-06A7

Specifications

Max Power Dissipation

85W

Maximum Power Dissipation Mw

85

Turn On Time

80 ns

Çalışma Sıcaklığı

-40°C~125°C TJ

Eccn Us

EAR99

Ntc Thermistor

Yes

Channel Type

N

Temel Parça No

MUBW

Input

Three Phase Bridge Rectifier

Gateemitter Voltagemax

20V

Kurşunsuz

Contains Lead

Montaj Tipi

Chassis Mount

Terminal Sayısı

24

Ppap

No

Akım Değeri

19A

Input Capacitance

600pF

Package Height

17

Mounting

Screw

Pin Sayısı

21

JESD-609 Kodu

e3

Eu Rohs

Compliant

Kurşunsuz Kodu

yes

Qualification Status

Not Qualified

Igbt Type

NPT

Transistor Application

POWER CONTROL

Typical Collector Emitter Saturation Voltage V

1.9

Input Capacitance Cies Vce

0.6nF @ 25V

Maximum Gate Emitter Leakage Current Ua

0.2

Terminal Formu

UNSPECIFIED

Minimum Operating Temperature C

-40

Automotive

No

Additional Feature

LOW SWITCHING LOSS, LOW SATURATION VOLTAGE

Power Max

85W

Collectoremitter Breakdown Voltage

600V

Polaritychannel Type

N-CHANNEL

Configuration

Three Phase Inverter with Brake

Reverse Voltage

1.6kV

Vcesatmax

2.3 V

Montaj

Chassis Mount, Screw

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
