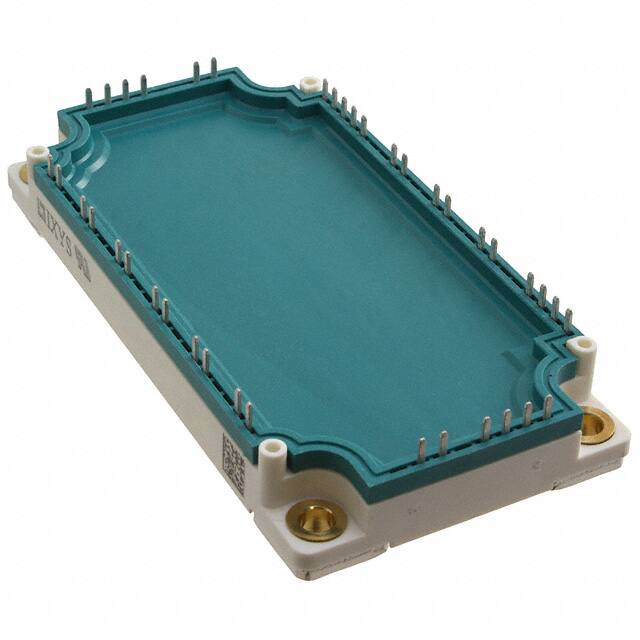

MIXA60WH1200TEH

Specifications

Gateemitter Voltagemax

20V

Maks. Çalışma Sıcaklığı

150°C

Parça Durumu

Active

Pin Sayısı

28

Collectoremitter Saturation Voltage

1.2kV

Input

Three Phase Bridge Rectifier

Power Dissipation

195W

Pcb Changed

28

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Automotive

No

Eu Rohs

Compliant

Supplier Package

Case E-3

Maximum Operating Temperature C

150

Kılıf / Paket

E3

Typical Collector Emitter Saturation Voltage V

1.8

Mounting

Screw

Number Of Elements

1

Collector Emitter Voltage Vceo

1.2kV

RoHS Durumu

ROHS3 Compliant

Maximum Gate Emitter Leakage Current Ua

0.5

Minimum Operating Temperature C

-40

Maximum Collectoremitter Voltage V

1200

Maximum Gate Emitter Voltage V

±20

Fabrika Tedarik Süresi

20 Weeks

Power Max

290W

Maximum Continuous Collector Current A

85

Vcesatmax

2.1 V

Montaj Tipi

Chassis Mount

Configuration

Three Phase Inverter with Brake

Current Collector Cutoff Max

500μA

Currentcollector Ic Max

85A

Channel Type

N

Ppap

No

Min. Çalışma Sıcaklığı

-40°C

Voltage Collector Emitter Breakdown Max

1200V

Maximum Power Dissipation Mw

290

Vceon Max Vge Ic

2.1V @ 15V, 55A

Eccn Us

EAR99

Ntc Thermistor

Yes
