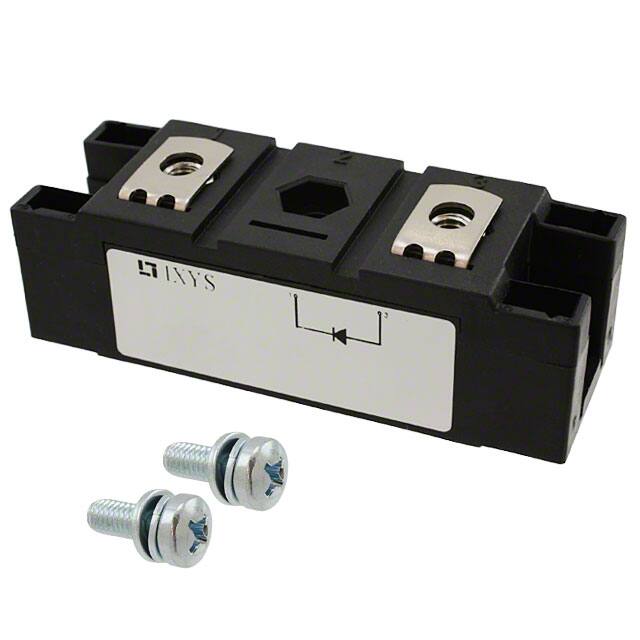

MEO450-12DA

Specifications

Pin Sayısı

2

Current Reverse Leakage Vr

24mA @ 1200V

Average Rectified Current

453A

Diode Type

Standard

Reverse Recovery Time

500 ns

Yayın Yılı

1996

Operating Temperature Junction

-40°C~150°C

Peak Reverse Current

24mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Max Forward Surge Current Ifsm

4.8kA

Current Average Rectified Io

453A

Tedarikçi Cihaz Paketi

Y4-M6

Ambalaj

Bulk

Max Repetitive Reverse Voltage Vrrm

1.2kV

Element Configuration

Single

Voltage Forward Vf Max If

1.96V @ 520A

Kurşunsuz

Lead Free

Montaj Tipi

Chassis Mount

RoHS Durumu

ROHS3 Compliant

Min. Çalışma Sıcaklığı

-40°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Forward Voltage

1.96V

Max Reverse Voltage Dc

1.2kV

Montaj

Chassis Mount, Screw

Maks. Çalışma Sıcaklığı

150°C

Voltage Dc Reverse Vr Max

1200V

Kılıf / Paket

Y4-M6

Radyasyon Dayanımı

No

Fabrika Tedarik Süresi

24 Weeks

Reverse Voltage

1.2kV

Peak Nonrepetitive Surge Current

5.28kA
