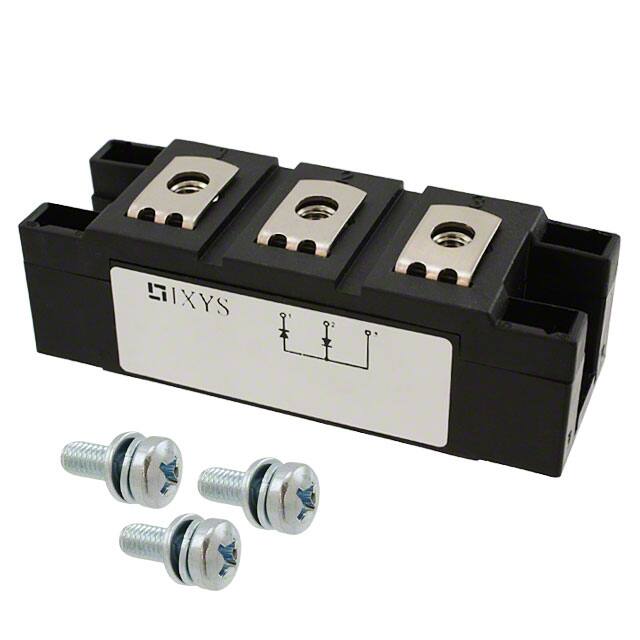

MEK300-06DA

Specifications

Tip

Switching Diode

Peak Nonrepetitive Surge Current A

2640

Package Length

94

Maximum Operating Temperature C

150

Automotive

No

Hts

8541.10.00.80

Reverse Recovery Time

300 ns

Diode Type

Standard

Minimum Operating Temperature C

-40

Diode Configuration

1 Pair Common Cathode

Pin Sayısı

3

Average Rectified Current

304A

Current Reverse Leakage Vr

12mA @ 600V

Temel Parça No

MEK

Package Height

30

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Maximum Continuous Forward Current A

304

Package Width

34

Fabrika Tedarik Süresi

24 Weeks

Voltage Dc Reverse Vr Max

600V

Seri

FRED

Kılıf / Paket

Y4-M6

Peak Reverse Recovery Time Ns

300

Eu Rohs

Compliant

Reverse Voltage

600V

Eccn Us

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Supplier Package

Y4-M6

Peak Reverse Repetitive Voltage V

600

Montaj Tipi

Chassis Mount

Configuration

Dual Common Cathode

Montaj

Chassis Mount, Screw

Peak Forward Voltage V

1.36@260A

Current Average Rectified Io

304A

Ambalaj

Bulk

Voltage Forward Vf Max If

1.36V @ 260A

Element Configuration

Common Cathode

Tedarikçi Cihaz Paketi

Y4-M6

Yayın Yılı

2000

Radyasyon Dayanımı

No
