Volume pricing
- 1+ pcs$66.94
- 10+ pcs$63.15
- 100+ pcs$59.58
- 500+ pcs$56.20
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

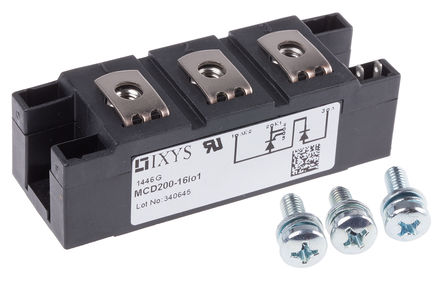

Specifications
- Temel Parça No
- MC*200
- Trigger Device Type
- SCR
- Structure
- Series Connection - SCR/Diode
- Current On State It Av Max
- 216A
- Number Of Elements
- 1
- Case Connection
- ISOLATED
- Qualification Status
- Not Qualified
- Yayın Yılı
- 2004
- Terminal Pozisyonu
- UPPER
- Jesd30 Code
- R-XUFM-X5
- Current Non Rep Surge5060hz Itsm
- 8000A 8600A
- Holding Currentmax
- 150mA
- Ambalaj
- Bulk
- Voltageoff State
- 1.6kV
- Desc Of Quickconnects
- G-GR
- Desc Of Screw Terminals
- A-K-AK
- Kurşunsuz Kodu
- yes
- Terminal Sayısı
- 5
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Current Gate Trigger Igt Max
- 150mA
- Repetitive Peak Reverse Voltage
- 1600V
- Parça Durumu
- Active
- Voltage Gate Trigger Vgt Max
- 2V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Pin Sayısı
- 5
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Chassis Mount
- Configuration
- SINGLE WITH BUILT-IN DIODE
- HTS Kodu
- 8541.30.00.80
- Additional Feature
- UL RECOGNIZED
- Terminal Formu
- UNSPECIFIED
- Yüzey Montaj
- NO
- Leakage Current Max
- 15mA
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Çalışma Sıcaklığı
- -40°C~125°C TJ
- Fabrika Tedarik Süresi
- 24 Weeks
- Number Of Scrsdiodes
- 1 SCR, 1 Diode
- Nonrepetitive Pk Onstate Cur
- 8640 A
- Onstate Currentmax
- 216000A
- Repetitive Peak Offstate Voltage
- 1600V
