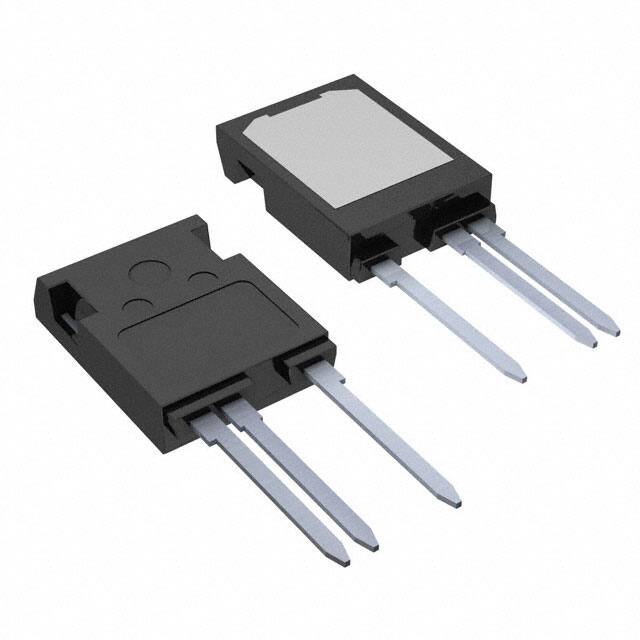

IXYX40N250CHV

Specifications

Fabrika Tedarik Süresi

24 Weeks

Continuous Collector Current At25 C

154 A

Maximum Continuous Collector Current A

154

Package Width

5.1(Max)

Configuration

Single

Parça Durumu

Active

Eccn Us

EAR99

Current Collector Pulsed Icm

380A

Package Height

23(Max)

Td Onoff25c

21ns/200ns

Collectoremitter Saturation Voltage

4 V

Technology

Si

Power Max

1500W

Maximum Gate Emitter Voltage V

±20

Minimum Operating Temperature C

-55

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Changed

3

Package Length

16.2(Max)

Minimum Operating Temperature

- 55 C

Typical Collector Emitter Saturation Voltage V

3.2

Maximum Operating Temperature C

175

Kılıf / Paket

TO-247-3 Variant

Yayın Yılı

2017

Maximum Power Dissipation Mw

1500

Voltage Collector Emitter Breakdown Max

2500V

Maximum Gate Emitter Voltage

- 20 V, 20 V

Svhc

Yes

Channel Type

N

Supplier Package

TO-247PLUS-HV

Maximum Gate Emitter Leakage Current Ua

0.1

Pin Sayısı

3

Collector Emitter Voltage Vceo Max

2.5 kV

Svhc Exceeds Threshold

Yes

Maks. Çalışma Sıcaklığı

+ 175 C

Tab

Tab

Maximum Collectoremitter Voltage V

2500

Mounting

Through Hole
