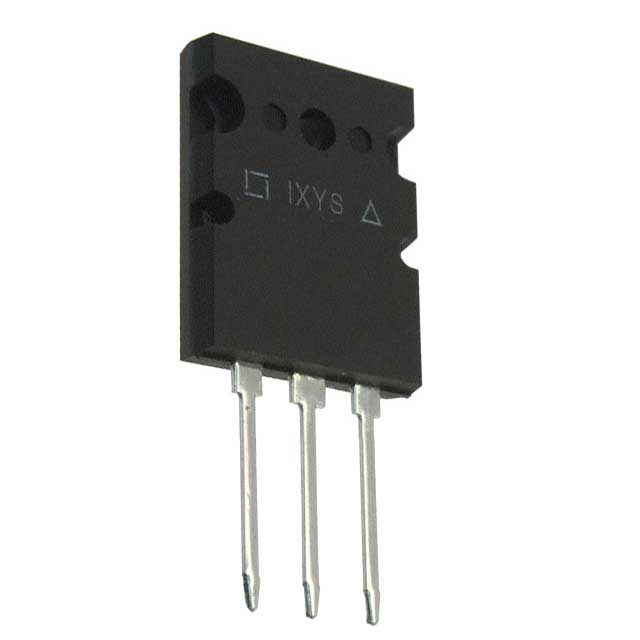

IXYK140N90C3

Specifications

Ambalaj

Tube

Collector Emitter Voltage Vceo

2.7V

Seri

GenX3™, XPT™

Switching Energy

4.3mJ (on), 4mJ (off)

Gate Charge

330nC

Power Max

1630W

Maximum Power Dissipation Mw

1630

Polaritychannel Type

N-CHANNEL

Transistor Application

POWER CONTROL

Kılıf / Paket

TO-264-3, TO-264AA

Minimum Operating Temperature C

-55

Max Power Dissipation

1.63kW

Max Collector Current

310A

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Current Collector Pulsed Icm

840A

Channel Type

N

Ppap

No

Td Onoff25c

40ns/145ns

Package Length

19.96(Max)

Eu Rohs

Compliant with Exemption

Collectoremitter Breakdown Voltage

900V

Number Of Elements

1

Maximum Gate Emitter Voltage V

±20

Gateemitter Thr Voltagemax

5.5V

Package Width

5.13(Max)

Terminal Pozisyonu

SINGLE

Tab

Tab

Pcb Changed

3

Automotive

No

Transistor Element Material

SILICON

Typical Collector Emitter Saturation Voltage V

2.15

Case Connection

COLLECTOR

Çalışma Sıcaklığı

-55°C~175°C TJ

Mounting

Through Hole

Maximum Continuous Collector Current A

310

Fabrika Tedarik Süresi

28 Weeks

Giriş Tipi

Standard

Package Height

26.16(Max)

Nem Hassasiyeti (MSL)

1 (Unlimited)
