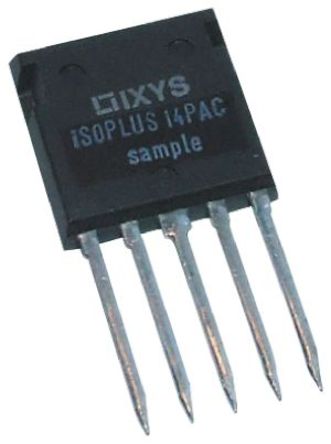

FII30-06D

Specifications

Max Power Dissipation

100W

Yükseklik

20.88mm

Kurşunsuz Kodu

yes

Collector Emitter Voltage Vceo

600V

RoHS Durumu

ROHS3 Compliant

Uzunluk

19.91mm

Terminal Pozisyonu

SINGLE

Input Capacitance Cies Vce

1.1nF @ 25V

Power Dissipation

100W

Current Collector Cutoff Max

600μA

Montaj

Through Hole

Vcesatmax

2.4 V

Max Collector Current

30A

Collectoremitter Breakdown Voltage

600V

Kılıf / Paket

i4-Pac™-5

Configuration

Half Bridge

Additional Feature

HIGH RELIABILITY

Turn Off Delay Time

300 ns

Ntc Thermistor

No

Transistor Element Material

SILICON

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

32 Weeks

Turn On Delay Time

50 ns

Terminal Kaplaması

TIN SILVER COPPER

Terminal Sayısı

5

Vceon Max Vge Ic

2.4V @ 15V, 20A

JESD-609 Kodu

e1

Genişlik

5.03mm

Parça Durumu

Active

Pin Sayısı

5

Collectoremitter Saturation Voltage

1.9V

Turn Off Timenom Toff

330 ns

Pin Sayısı

5

Number Of Elements

2

Polaritychannel Type

N-CHANNEL

Case Connection

ISOLATED

Çalışma Sıcaklığı

-55°C~150°C TJ

Input

Standard

Montaj Tipi

Through Hole

Igbt Type

NPT
