Volume pricing
- 1+ pcs$115.09
- 10+ pcs$108.58
- 100+ pcs$102.43
- 500+ pcs$96.63
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Pitch
- 1.27mm
- Body Depth
- 0.225 inch
- Contact Resistance
- 10mOhm
- Fabrika Tedarik Süresi
- 12 Weeks
- Part Life Cycle Code
- Active
- REACH Uyumluluk Kodu
- compliant
- Connector Type
- D-Sub
- Sıra Sayısı
- 2
- Üretici Parça No

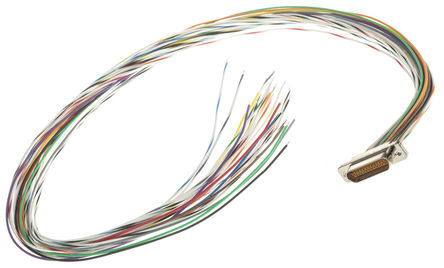

- MDM-25SH003B-A174
- Genişlik
- 7.82mm
- Insertion Forcemax
- 2.224 N
- Insulation Resistance
- 5000000000Ohm
- Akım Değeri
- 3A
- RoHS Durumu
- RoHS Compliant
- Risk Rank
- 2.23
- Number Of Contacts
- 25
- Mating Contact Row Spacing
- 0.043 inch
- Contact Pattern
- STAGGERED
- Min. Çalışma Sıcaklığı
- -55°C
- Dielectric Withstanding Voltage
- 900VAC V
- Operating Temperaturemax
- 125 °C
- Wire Size Min
- 32 AWG
- Yayın Yılı
- 2000
- Wire Sizemax
- 24 AWG
- Rohs Code
- Yes
- Parça Durumu
- Active
- Wire Size Max
- 24 AWG
- Rated Current Signal
- 3A
- Max Current Rating
- 3A
- Contact Materials
- COPPER ALLOY
- Ihs Manufacturer
- ITT CANNON
- Reliability
- COMMERCIAL
- Withdrawl Forcemin
- .139 N
- Gender
- Female
- Insulator Material
- GLASS FILLED DIALLYL PHTHALATE
- Body Length
- 1.185 inch
- Contact Plating
- Gold
- Uzunluk
- 30.1mm
- Maks. Çalışma Sıcaklığı
- 125°C
- HTS Kodu
- 8536.69.40.30
