Volume pricing
- 1+ pcs$127.34
- 10+ pcs$120.13
- 100+ pcs$113.33
- 500+ pcs$106.92
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

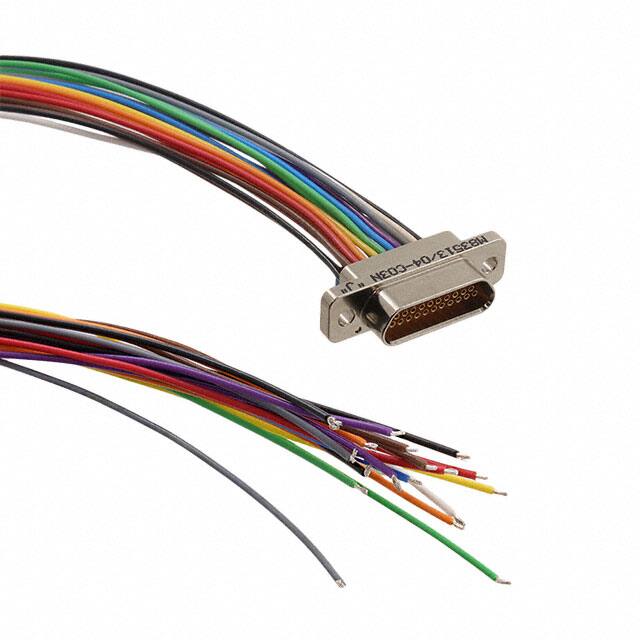

Specifications
- Connector Type
- D-SUBMINIATURE
- 1st Connector
- Receptacle, Female Sockets
- Birim Ağırlık
- 2 oz
- Wirecable Gauge
- 26 AWG
- Contact Finish
- Gold
- Contact Plating
- Gold
- Max Current Rating
- 3A
- Option
- GENERAL PURPOSE
- Empty Shell
- NO
- Pin Sayısı
- 21
- Mounting Option1
- HOLE .094
- Total Number Of Contacts
- 21
- Additional Feature
- STANDARD: MIL-DTL-83513
- Çalışma Sıcaklığı
- -55 to 125 °C
- Number Of Conductors
- ONE
- Operating Temperature Max
- 125°C
- Wirecable Type
- Coaxial
- Rated Current Signal
- 3A
- Reference Standard
- MIL
- HTS Kodu
- 8536.69.40.30
- 2nd Connector
- Individual Wire Leads
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Terminal Stili
- Wire Leads
- Gender
- Female
- Termination Method
- Crimp
- Body Depth
- 0.224 inch
- Seri
- M83513
- Withdrawl Forcemin
- 0.139 N
- Insulation Materials
- LIQUID CRYSTAL POLYMER
- Contact Pattern
- STAGGERED
- Montaj Stili
- Panel
- Mounting Angle
- Straight
- Terminal
- Crimp
- Pozisyon Sayısı
- 21 Position
- RoHS Durumu
- Non-RoHS Compliant
- Body Length Or Diameter
- 1.075 inch
- Shell Plating
- Electroless Nickel
- Kablo Uzunluğu
- 457mm
- Montaj Tipi
- CABLE
- Connector Type B
- Not Included
