Volume pricing
- 1+ pcs$63.22
- 10+ pcs$59.64
- 100+ pcs$56.27
- 500+ pcs$53.08
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

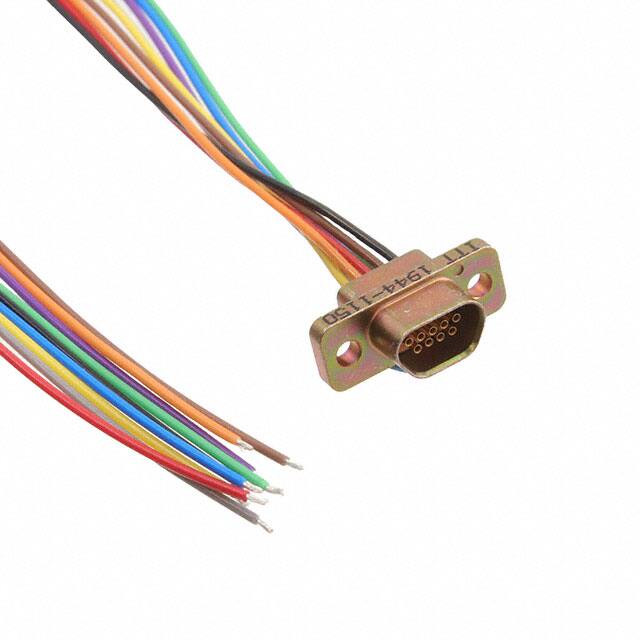

Specifications
- Insertion Forcemax
- 2.78 N
- Temel Ürün No
- M83513/04
- Plating
- Cadmium
- Wire Gauge
- 26 AWG
- Contact Materials
- COPPER ALLOY
- Akım Değeri
- 3 A
- Bodyshell Style
- RECEPTACLE
- Fabrika Tedarik Süresi
- 5 Weeks
- Body Breadth
- 0.308 inch
- Voltage Rating
- 600 VAC
- Wire Size Max
- 24 AWG
- Ürün Durumu
- Active
- Contact Resistance
- 8mOhm
- Reach Svhc
- No SVHC
- Tradename
- MIL-DTL-83513
- Dielectric Withstanding Voltage
- 600VAC V
- Contact Finish Thickness
- 50.0µin (1.27µm)
- Wire Sizemin
- 26 AWG
- Durability
- 500 Cycles
- Shell Material
- METAL
- Contact Finish Mating
- GOLD
- Number Of Contacts
- 9
- Renk
- Multiple, Individual
- Din Conformance
- NO
- Contact Style
- RND PIN-SKT
- Operating Temperaturemin
- -55 °C
- Mil Conformance
- YES
- Seri
- M83513
- Maks. Çalışma Sıcaklığı
- 150 °C
- Body Length Or Diameter
- 0.775 inch
- RoHS Durumu
- Non-RoHS Compliant
- Terminal
- Crimp
- Montaj Stili
- Panel
- Operating Temperaturemax
- 125 °C
- Total Number Of Contacts
- 9
- Mounting Option1
- #2-56 UNC-2B
- Number Of Rows Loaded
- 2
- Empty Shell
- NO
- Max Current Rating
- 3A
- Option
- GENERAL PURPOSE
