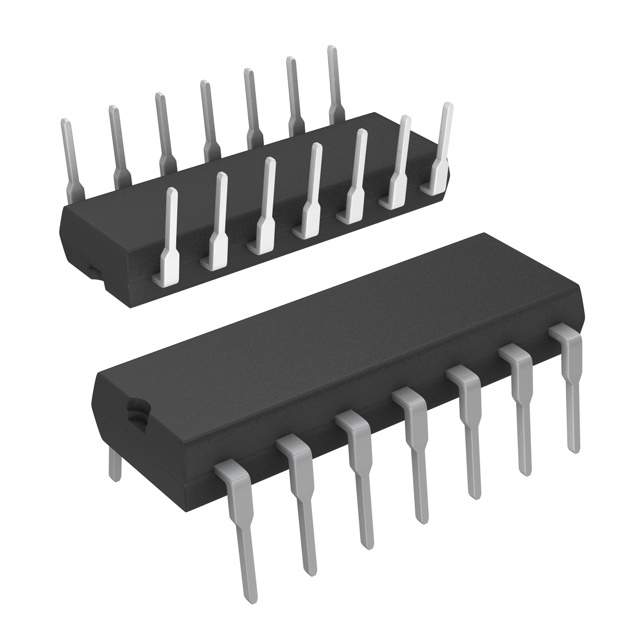

ISL8491IP

Specifications

RoHS Durumu

RoHS Compliant

Output Low Currentmax

0.004A

Data Rate

5 Mbps

Supply Voltagemax Vsup

5.5V

Fonksiyon Sayısı

1

Terminal Kaplaması

Tin/Lead (Sn/Pb)

Qualification Status

Not Qualified

ECCN Kodu

EAR99

Receive Delaymax

150 ns

Uzunluk

19.17mm

Receiver Number Of Bits

1

Pin Sayısı

14

Genişlik

7.62mm

Operating Temperature Max

85°C

Driver Number Of Bits

1

Kılıf / Paket

DIP

Input Characteristics

DIFFERENTIAL SCHMITT TRIGGER

JESD-609 Kodu

e0

Interface Ic Type

LINE TRANSCEIVER

Interface Standards

EIA-422; EIA-485

HTS Kodu

8542.39.00.01

Supply Currentmax

0.565mA

Maks. Oturma Yüksekliği

5.33mm

Out Swingmin

1.5 V

Yayın Yılı

2003

Power Supplies

5V

Supply Voltagemin Vsup

4.5V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Operating Temperature Min

-40°C

Temperature Grade

INDUSTRIAL

Montaj

Through Hole

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Differential Output

YES

Terminal Sayısı

14

Besleme Gerilimi

5V

Parça Durumu

Discontinued

Ambalaj

Bulk

High Level Input Currentmax

0.000002A

Transmit Delaymax

50 ns

Kurşunsuz

Contains Lead
