Volume pricing
- 1+ pcs$5.18
- 10+ pcs$4.88
- 100+ pcs$4.61
- 500+ pcs$4.35
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Max Supply Voltage
- 114V
- Interface Ic Type
- HALF BRIDGE BASED MOSFET DRIVER
- RoHS Durumu
- RoHS Compliant
- Usage Level
- Automotive grade
- Number Of Drivers
- 2
- Montaj Tipi
- Surface Mount
- Giriş Tipi
- Non-Inverting
- Logic Voltagevil Vih
- 1.8V 4V
- Ambalaj
- Tube
- Seri
- Automotive, AEC-Q100
- Min Supply Voltage
- 8V
- ECCN Kodu
- EAR99
- High Side Voltage Max Bootstrap
- 114V
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Yayın Yılı
- 2010
- Max Output Current
- 2A
- Montaj
- Surface Mount
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Terminal Kaplaması
- Matte Tin (Sn)
- Current Peak Output Source Sink
- 2A 2A
- Maks. Çalışma Sıcaklığı
- 150°C
- Min. Çalışma Sıcaklığı
- -55°C
- JESD-609 Kodu
- e3
- Gate Type
- N-Channel MOSFET
- Rise Fall Time Typ
- 10ns 10ns
- Pin Sayısı
- 14
- Max Supply Current
- 4mA
- Channel Type
- Synchronous
- Çalışma Sıcaklığı
- -55°C~150°C TJ
- Besleme Gerilimi
- 8V~14V
- Power Dissipation Max
- 3.5W
- Driver Configuration
- Half-Bridge
- Pin Sayısı
- 14
- Fabrika Tedarik Süresi
- 6 Weeks
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Parça Durumu
- Active

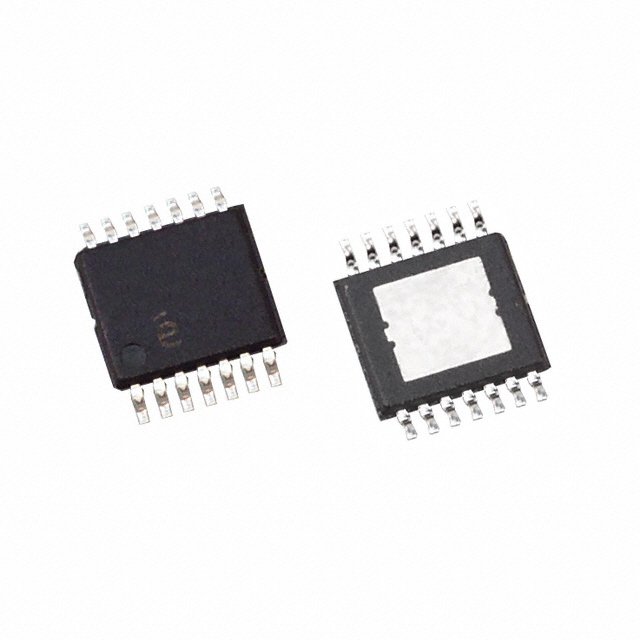

- Kılıf / Paket
- 14-TSSOP (0.173, 4.40mm Width) Exposed Pad
