Specifications
- Driver Configuration
- Half-Bridge
- Terminal Sayısı
- 8
- Çalışma Sıcaklığı
- 0°C~125°C TJ
- Supply Voltagemin Vsup
- 10.8V
- Pin Sayısı
- 8
- Number Of Outputs
- 2
- High Side Voltage Max Bootstrap
- 36V
- Min. Çalışma Sıcaklığı
- 0°C
- Parça Durumu
- Discontinued
- Terminal Pozisyonu
- DUAL
- Number Of Drivers
- 2
- Temel Parça No
- ISL6613A
- High Side Driver
- YES
- Kurşunsuz
- Contains Lead
- Terminal Formu
- GULL WING
- Qualification Status
- Not Qualified
- JESD-609 Kodu
- e0
- Tepe Reflow Sıcaklığı (°C)
- 240
- Channel Type
- Synchronous
- Temperature Grade
- OTHER
- Genişlik
- 3.9mm
- Montaj Tipi
- Surface Mount
- Rise Fall Time Typ
- 26ns 18ns
- Interface Ic Type
- HALF BRIDGE BASED MOSFET DRIVER
- Maks. Çalışma Sıcaklığı
- 85°C
- Gate Type
- N-Channel MOSFET
- Ambalaj
- Tube
- Besleme Gerilimi
- 10.8V~13.2V
- ECCN Kodu
- EAR99
- Uzunluk
- 4.89mm
- Tepe Reflow Süresi (maks. sn)
- 30
- Supply Voltage1min
- 5V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Current Peak Output Source Sink
- 1.25A 2A

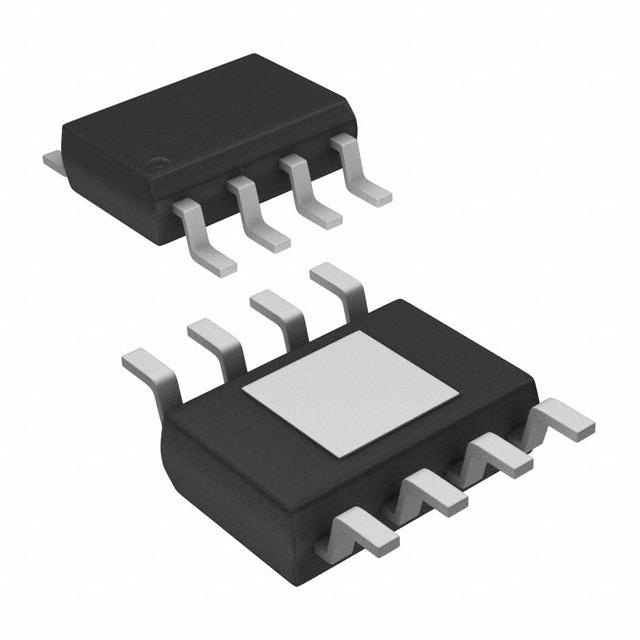

- Kılıf / Paket
- 8-SOIC (0.154, 3.90mm Width) Exposed Pad
- Besleme Gerilimi
- 12V
- Giriş Tipi
- Non-Inverting
- Supply Voltage1nom
- 12V
- Fonksiyon Sayısı
- 1
- RoHS Durumu
- RoHS Compliant
