Intersil (Renesas Electronics America)

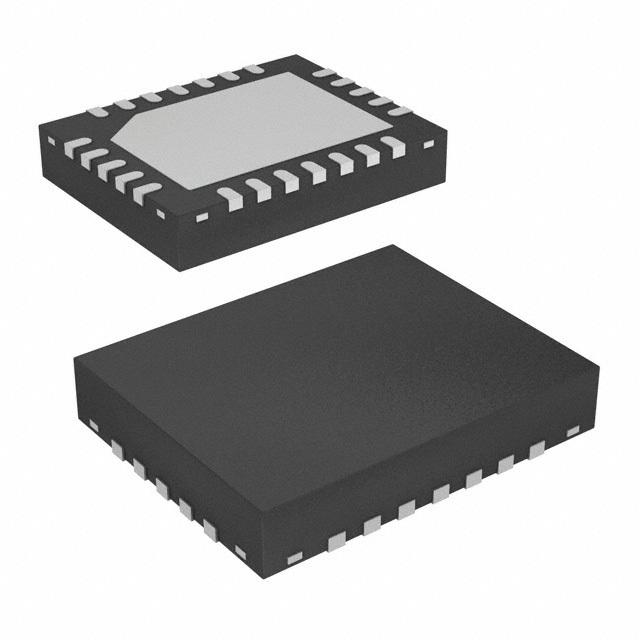

ISL6563IRZ
Specialized Voltage Regulators
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$8.50
- 10+ pcs$8.02
- 100+ pcs$7.57
- 500+ pcs$7.14
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Terminal Sayısı
- 24
- Frequency Switching
- 255kHz
- Max Duty Cycle
- 66 %
- Radyasyon Dayanımı
- No
- Pin Sayısı
- 24
- Terminal Adımı
- 0.5mm
- Operating Supply Voltage
- 5V
- Pin Sayısı
- 24
- Rise Time
- 8ns
- Input Voltagenom
- 5V
- Min. Çalışma Sıcaklığı
- 0°C
- Parça Durumu
- Active
- Number Of Outputs
- 1
- Terminal Pozisyonu
- QUAD
- Kurşunsuz
- Lead Free
- Analog Ic Other Type
- SWITCHING CONTROLLER
- Tepe Reflow Sıcaklığı (°C)
- 260
- JESD-609 Kodu
- e3
- Genişlik
- 4mm
- Temperature Grade
- COMMERCIAL
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Maks. Çalışma Sıcaklığı
- 70°C
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Tepe Reflow Süresi (maks. sn)
- 30
- Uzunluk
- 4mm
- Çıkış Akımı
- 60A
- Fall Time Typ
- 8 ns
- Switcher Configuration
- PHASE-SHIFT
- Control Mode
- CURRENT-MODE
- Frekans
- 255kHz
- Kılıf / Paket
- QFN
- Control Technique
- PULSE WIDTH MODULATION
- Çıkış Gerilimi
- 1.85V
- Fonksiyon Sayısı
- 1
- Montaj
- Surface Mount
- Terminal Kaplaması
- MATTE TIN
- Yayın Yılı
- 2000
- RoHS Durumu
- RoHS Compliant
