Volume pricing
- 1+ pcs$4.50
- 10+ pcs$4.25
- 100+ pcs$4.01
- 500+ pcs$3.78
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Terminal Adımı
- 1.27mm
- RoHS Durumu
- RoHS Compliant
- Rise Fall Time Typ
- 20ns 10ns
- Max Supply Current
- 10.5mA
- Gate Type
- N-Channel MOSFET
- Fabrika Tedarik Süresi
- 23 Weeks
- Rise Time
- 40ns
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Fonksiyon Sayısı
- 1
- Current Peak Output Source Sink
- 500mA 500mA
- Terminal Pozisyonu
- DUAL
- Channel Type
- 3-Phase
- Min Supply Voltage
- 7V
- Maks. Çalışma Sıcaklığı
- 125°C
- Uzunluk
- 15.4mm
- High Side Voltage Max Bootstrap
- 95V
- Pin Sayısı
- 24
- Giriş Tipi
- Inverting, Non-Inverting
- Interface Ic Type
- HALF BRIDGE BASED MOSFET DRIVER
- Turn Off Time
- 0.1 μs

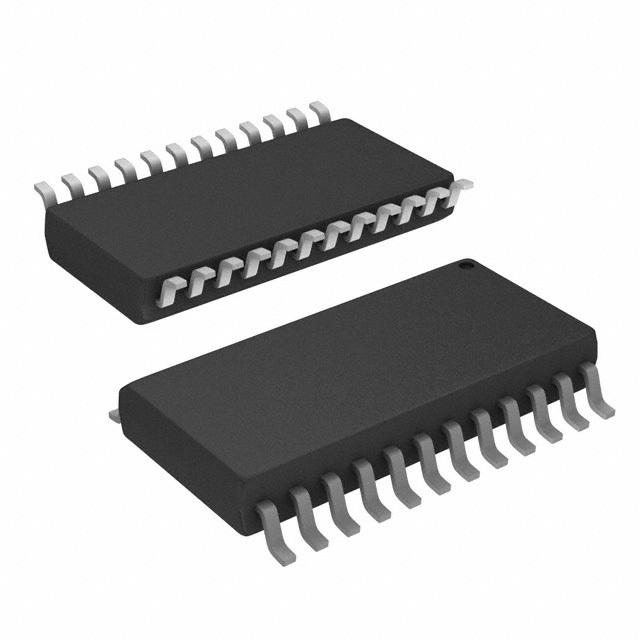

- Kılıf / Paket
- SOIC
- Temperature Grade
- AUTOMOTIVE
- Terminal Formu
- GULL WING
- Parça Durumu
- Active
- Genişlik
- 7.5mm
- Maks. Oturma Yüksekliği
- 2.65mm
- Ambalaj
- Tape & Reel (TR)
- Max Output Current
- 1.5A
- Terminal Sayısı
- 24
- Yayın Yılı
- 2010
- Besleme Gerilimi
- 7V~15V
- Jesd30 Code
- R-PDSO-G24
- HTS Kodu
- 8542.39.00.01
- High Side Driver
- YES
- ECCN Kodu
- EAR99
- Terminal Kaplaması
- Matte Tin (Sn) - annealed
- Max Supply Voltage
- 95V
- Temel Parça No
- HIP4086
