Volume pricing
- 1+ pcs$8.97
- 10+ pcs$8.47
- 100+ pcs$7.99
- 500+ pcs$7.53
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Pin Sayısı
- 8
- Qualification Status
- Not Qualified
- Besleme Gerilimi
- 12V
- Min. Çalışma Sıcaklığı
- -40°C
- Ambalaj
- Tape & Reel (TR)
- Output Peak Current Limitnom
- 12A
- Logic Voltagevil Vih
- 0.8V 2.4V
- Kurşunsuz
- Lead Free
- Giriş Tipi
- Non-Inverting
- Terminal Sayısı
- 8
- Besleme Gerilimi
- 4.5V~12V
- Temperature Grade
- INDUSTRIAL
- Montaj
- Surface Mount
- Channel Type
- Single
- Pin Sayısı
- 8
- RoHS Durumu
- RoHS Compliant
- Number Of Drivers
- 1
- Temel Parça No
- EL7158
- Montaj Tipi
- Surface Mount
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Driver Configuration
- High-Side or Low-Side
- Output Polarity
- TRUE
- Çalışma Sıcaklığı
- -40°C~125°C TJ
- Terminal Kaplaması
- Matte Tin (Sn) - annealed
- Output Characteristics
- 3-STATE
- ECCN Kodu
- EAR99
- JESD-609 Kodu
- e3
- Output Current Flow Direction
- SOURCE SINK
- Supply Voltagemin Vsup
- 4.5V
- Maks. Çalışma Sıcaklığı
- 85°C
- Fabrika Tedarik Süresi
- 13 Weeks

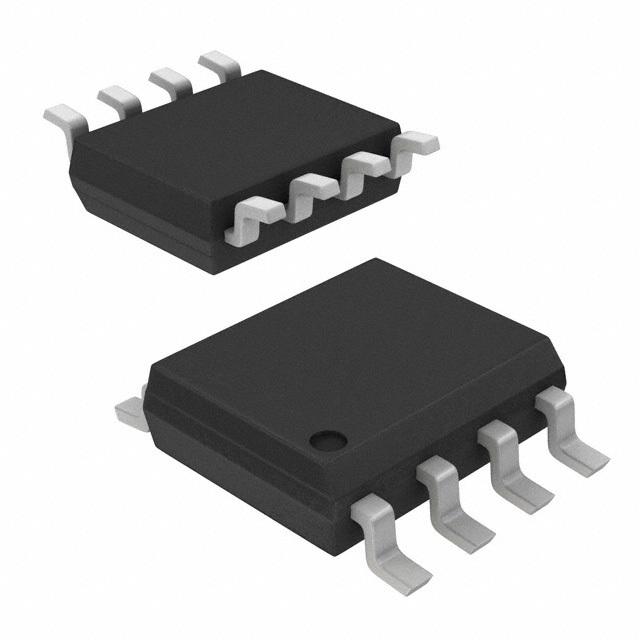

- Kılıf / Paket
- SOIC
- Fonksiyon Sayısı
- 1
- Terminal Formu
- GULL WING
- Max Output Current
- 12A
- Number Of Outputs
- 1
- Yüzey Montaj
- YES
- Usage Level
- Industrial grade
- Gate Type
- IGBT
- Input Characteristics
- SCHMITT TRIGGER
