Volume pricing
- 1+ pcs$5.83
- 10+ pcs$5.50
- 100+ pcs$5.19
- 500+ pcs$4.90
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Uzunluk
- 4.9mm
- Current Peak Output Source Sink
- 3.5A 3.5A
- Tepe Reflow Süresi (maks. sn)
- 40
- Terminal Pozisyonu
- DUAL
- Parça Durumu
- Active
- Tepe Reflow Sıcaklığı (°C)
- 260
- Yayın Yılı
- 2002
- Rise Fall Time Typ
- 14.5ns 15ns
- Min Supply Voltage
- 4.5V
- Interface Ic Type
- HALF BRIDGE BASED PERIPHERAL DRIVER
- Gate Type
- IGBT
- Direnç
- 2.7Ohm
- Nominal Supply Current
- 3mA
- Negative Supply Voltagenom
- -5V
- Fabrika Tedarik Süresi
- 5 Weeks

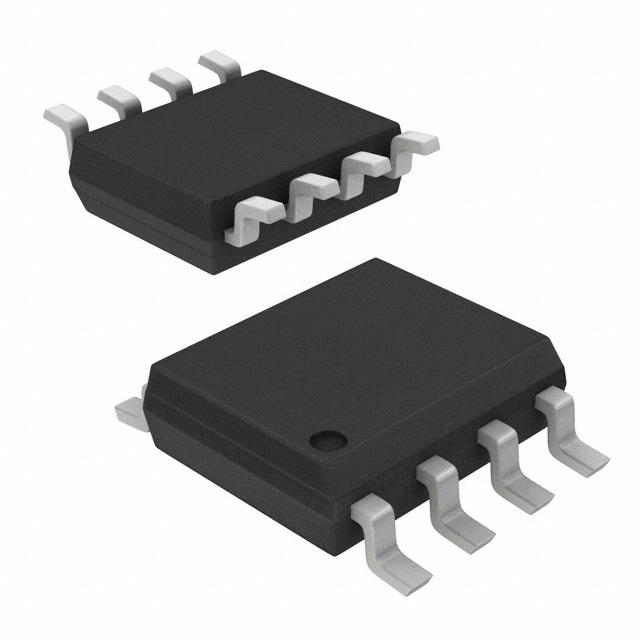

- Kılıf / Paket
- SOIC
- Turn Off Delay Time
- 11.5 ns
- Fonksiyon Sayısı
- 1
- Max Output Current
- 3.5A
- Turn On Delay Time
- 12 ns
- Terminal Formu
- GULL WING
- Number Of Outputs
- 2
- Çalışma Sıcaklığı
- -40°C~125°C TJ
- Max Supply Current
- 3mA
- Terminal Kaplaması
- Matte Tin (Sn) - annealed
- ECCN Kodu
- EAR99
- JESD-609 Kodu
- e3
- Output Current Flow Direction
- SOURCE SINK
- Maks. Çalışma Sıcaklığı
- 85°C
- Number Of Drivers
- 1
- Montaj Tipi
- Surface Mount
- Temel Parça No
- EL7155
- Genişlik
- 3.9mm
- Driver Configuration
- High-Side or Low-Side
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Rise Time
- 17ns
- Kurşunsuz
- Lead Free
- Besleme Gerilimi
- 4.5V~16.5V
- Output Current Per Channel
- 200mA
- Terminal Sayısı
- 8
