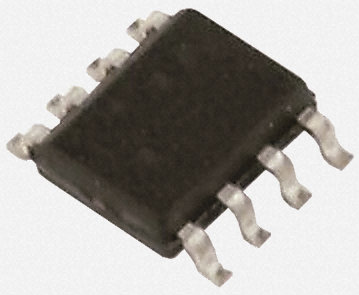

ICS553MILF

Specifications

Part Package Code

SOIC

Package Body Material

PLASTIC/EPOXY

Seated Heightmax

1.75 mm

Pin Sayısı

8

Reflow Temperaturemax S

30

Number Of True Outputs

4

Üretici Parça No

ICS553MILF

Frekans

200MHz

Temperature Grade

INDUSTRIAL

Kurşunsuz Kodu

Yes

RoHS Durumu

RoHS Compliant

Jesd30 Code

R-PDSO-G8

Supply Voltagenom Vsup

2.5 V

Package Style

SMALL OUTLINE

Min Supply Voltage

2.375V

Logic Function

Clock

Max Iol

0.035 A

Output Characteristics

3-STATE

Propagation Delay Tpd

5 ns

Same Edge Skewmax Tskwd

0.05 ns

Package Equivalence Code

SOP8,.25

Paket

Bulk

JESD-609 Kodu

e3

Supply Voltagemax Vsup

5.25 V

HTS Kodu

8542.39.00.01

Terminal Formu

GULL WING

Maks. Çalışma Sıcaklığı

85°C

Technology

CMOS

Operating Temperaturemax

85 °C

Seri

*

Pin Sayısı

8

Fonksiyon Sayısı

1

Tepe Reflow Sıcaklığı (°C)

260

Prop

4 ns

Fmaxmin

200 MHz

Supply Voltagemin Vsup

2.375 V

Qualification Status

Not Qualified

Uzunluk

5mm

Rohs Code

Yes

ECCN Kodu

EAR99
