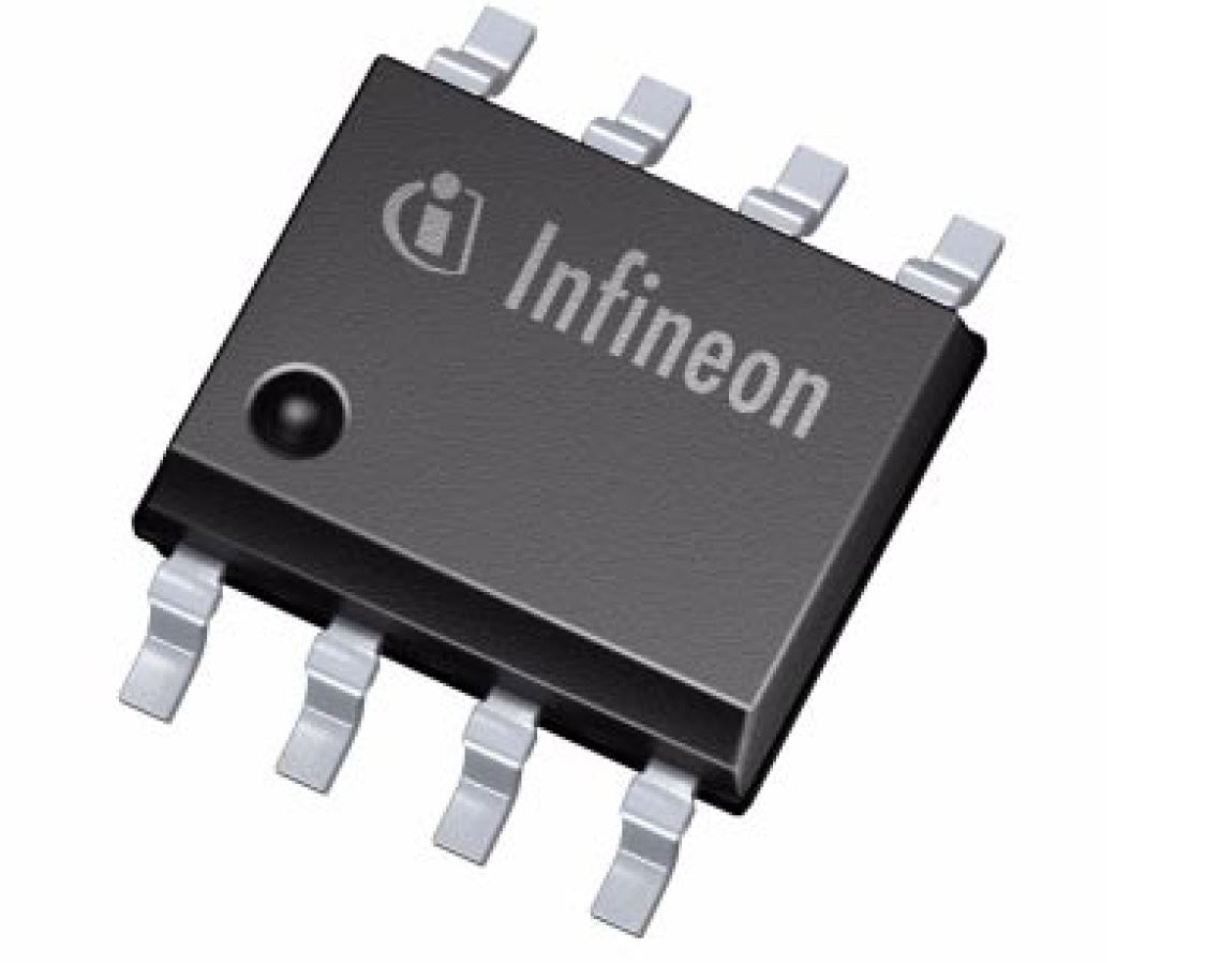

TLE4998P8DXUMA1

Specifications

Body Height

1.2mm

Yayın Yılı

2014

Housing

PLASTIC

Kurşunsuz Kodu

yes

Operating Temperature Max

125°C

Yüzey Montaj

YES

Supply Voltagemin Vsup

4.5V

Terminal Kaplaması

Tin (Sn)

Çıkış Tipi

DIGITAL CURRENT

Magnetic Field Rangemin

-50 mT

Sensorstransducers Type

MAGNETIC FIELD SENSOR,HALL EFFECT

Body Length Or Diameter

5mm

Additional Feature

AEC-Q100; IT ALSO OPERATES AT EXTENDED RANGE 4.1 TO 16V SUPPLY VOLTAGE; IT HAS SENSITIVITY OF 1.2 PERCENT/MT; SHORT-CIRCUIT PROTECTION

Output Currentmax

5mA

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Supply Voltagemax Vsup

5.5V

Termination Type

SOLDER

Operating Temperature Min

-40°C

Magnetic Field Rangemax

200 mT

Operating Currentmax

8mA

Mounting Feature

SURFACE MOUNT

Body Breadth

3.9 mm

Fabrika Tedarik Süresi

39 Weeks

JESD-609 Kodu

e3

Seri

Automotive, AEC-Q100

Output Range

0-5mA

Ambalaj

Tape & Reel (TR)
