Volume pricing
- 1+ pcs$16.45
- 10+ pcs$15.52
- 100+ pcs$14.64
- 500+ pcs$13.81
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Function
- Driver - Fully Integrated, Control and Power Stage
- Besleme Gerilimi
- 13.5V~16.5V
- Besleme Gerilimi
- 15V
- Uzunluk
- 12mm
- Terminal Sayısı
- 37
- Voltage Load
- 400V Max
- Yüzey Montaj
- YES
- Terminal Formu
- NO LEAD
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Genişlik
- 12mm
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Technology
- UMOS
- Supply Voltagemax Vsup
- 16.5V
- Ambalaj
- Tape & Reel (TR)
- Motor Type Ac Dc
- AC, Synchronous
- Interface
- Parallel
- Terminal Pozisyonu
- QUAD
- Tedarikçi Cihaz Paketi
- 37-PQFN (12x12)
- Ürün Durumu
- Active
- Yayın Yılı
- 2013
- Supply Voltagemin Vsup
- 13.5V
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Power Supplies
- 15V
- Parça Durumu
- Active
- Çıkış Akımı
- 4A
- Jesd30 Code
- S-PQMA-N37
- Analog Ic Other Type
- AC MOTOR CONTROLLER
- Applications
- Appliance
- Paket
- Bulk
- Qualification Status
- Not Qualified
- Maks. Oturma Yüksekliği
- 1mm
- HTS Kodu
- 8542.39.00.01
- Fabrika Tedarik Süresi
- 18 Weeks
- Output Configuration
- Half Bridge (3)
- Supply Currentmax Isup
- 10mA
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Surface Mount

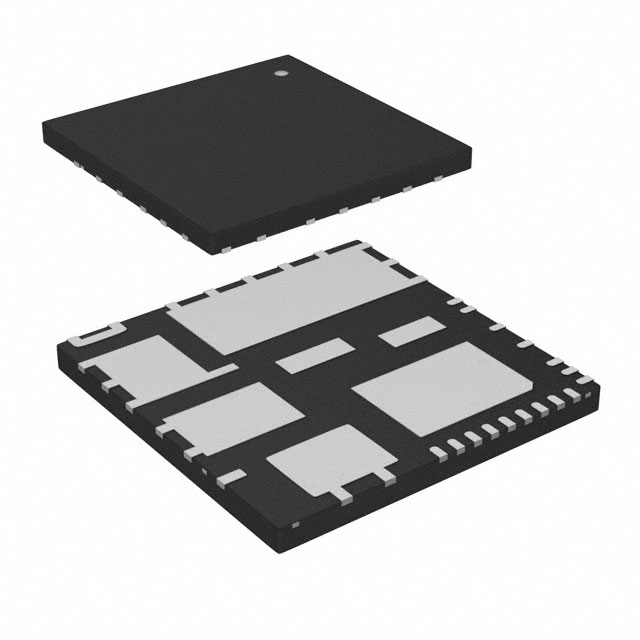

- Kılıf / Paket
- 37-PowerVQFN
- Temel Parça No
- IRSM836-045
