Specifications
- RoHS Durumu
- ROHS3 Compliant
- Load Type
- Inductive, Capacitive
- HTS Kodu
- 8542.39.00.01
- Fabrika Tedarik Süresi
- 18 Weeks
- Output Configuration
- Half Bridge
- Turn On Time
- 0.22 µs
- Fonksiyon Sayısı
- 1
- Özellikler
- Bootstrap Circuit
- Montaj Tipi
- Surface Mount

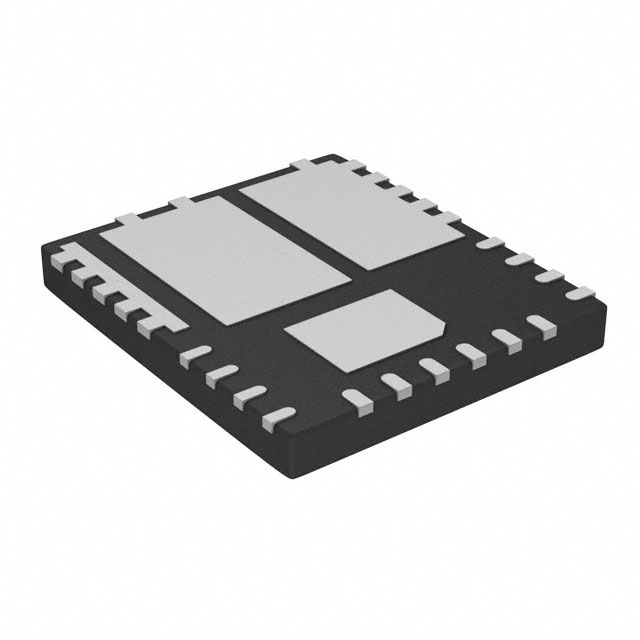

- Kılıf / Paket
- 27-PowerVQFN
- Fault Protection
- UVLO
- Seri
- µIPM™
- Yayın Yılı
- 2014
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Rds On Typ
- 16m Ω
- Maks. Oturma Yüksekliği
- 1mm
- Parça Durumu
- Active
- Applications
- AC Motors, DC Motors, DC-DC Converters, General Purpose
- Jesd30 Code
- R-PQCC-N27
- Ambalaj
- Tape & Reel (TR)
- Builtin Protections
- TRANSIENT; UNDER VOLTAGE
- Output Current Flow Direction
- SOURCE SINK
- Turn Off Time
- 0.22 µs
- Interface
- Logic
- Terminal Pozisyonu
- QUAD
- Besleme Gerilimi
- 15V
- Uzunluk
- 8mm
- Terminal Sayısı
- 27
- Voltage Load
- 100V Max
- Besleme Gerilimi
- 10V~20V
- Terminal Formu
- NO LEAD
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Genişlik
- 7mm
- Çalışma Sıcaklığı
- 150°C TJ
- ECCN Kodu
- EAR99
- Yüzey Montaj
- YES
