Volume pricing
- 1+ pcs$8.40
- 10+ pcs$7.92
- 100+ pcs$7.48
- 500+ pcs$7.05
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- RoHS Durumu
- ROHS3 Compliant
- Turn Off Time
- 0.75 μs
- HTS Kodu
- 8542.39.00.01
- Fall Time Typ
- 50 ns
- Rise Fall Time Typ
- 125ns 50ns
- Nominal Supply Current
- 200mA
- Current Peak Output Source Sink
- 200mA 350mA
- Genişlik
- 5mm
- Driver Configuration
- Half-Bridge
- Temel Parça No
- IRS2334MPBF
- Channel Type
- 3-Phase
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Max Power Dissipation
- 3.363W
- Gate Type
- IGBT, N-Channel MOSFET
- Giriş Tipi
- Non-Inverting
- High Side Voltage Max Bootstrap
- 600V
- Output Current
- 200mA
- Number Of Drivers
- 6
- Max Output Current
- 200mA
- Turn Off Delay Time
- 750 ns
- Uzunluk
- 5mm
- Propagation Delay
- 750 ns
- Yayın Yılı
- 1996
- Terminal Sayısı
- 28
- Terminal Formu
- NO LEAD
- Parça Durumu
- Active
- Qualification Status
- Not Qualified
- Rise Time
- 125ns
- Logic Voltagevil Vih
- 0.8V 2.5V
- Montaj
- Surface Mount
- Besleme Gerilimi
- 10V~20V
- Besleme Gerilimi
- 15V

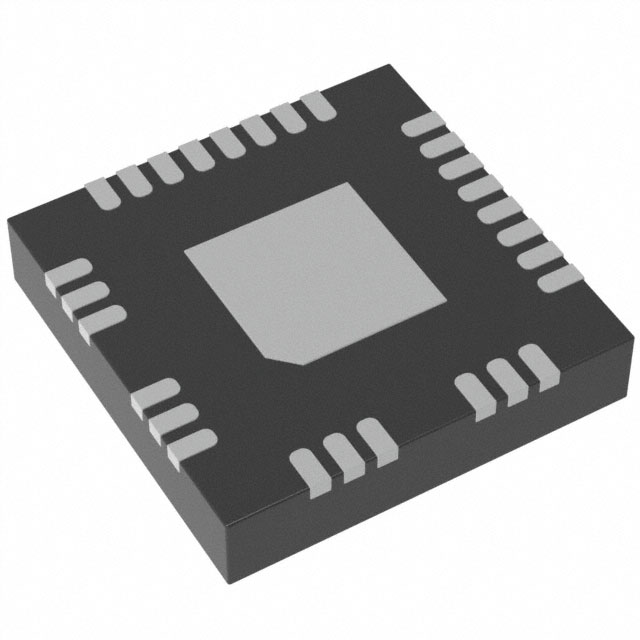

- Kılıf / Paket
- 28-VFQFN Exposed Pad
- Ambalaj
- Tape & Reel (TR)
- Montaj Tipi
- Surface Mount
- Fabrika Tedarik Süresi
- 18 Weeks
- Power Supplies
- 15V
- Reach Svhc
- No SVHC
- Terminal Pozisyonu
- QUAD
- Maks. Oturma Yüksekliği
- 1mm
