Specifications
- Terminal Pozisyonu
- QUAD
- HTS Kodu
- 8542.39.00.01
- Temel Parça No
- IR2238Q
- Terminal Formu
- GULL WING
- Supply Voltagemax Vsup
- 20V
- Analog Ic Other Type
- AC MOTOR CONTROLLER
- Qualification Status
- Not Qualified
- Output Configuration
- Pre-Driver - Half Bridge (3)
- JESD-609 Kodu
- e3
- Applications
- General Purpose
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Genişlik
- 14mm
- Yüzey Montaj
- YES
- Montaj Tipi
- Surface Mount
- Terminal Sayısı
- 64
- Interface
- Parallel
- Motor Type Ac Dc
- AC, Synchronous
- Terminal Adımı
- 1mm
- Supply Voltagemin Vsup
- 12.5V
- Function
- Controller - Commutation, Direction Management
- Çalışma Sıcaklığı
- -20°C~115°C TA
- Parça Durumu
- Obsolete
- Besleme Gerilimi
- 15V
- Terminal Kaplaması
- Matte Tin (Sn)
- Jesd30 Code
- R-PQFP-G64
- Yayın Yılı
- 1996
- RoHS Durumu
- Non-RoHS Compliant
- Maks. Oturma Yüksekliği
- 3.15mm
- Besleme Gerilimi
- 12.5V~20V
- Ambalaj
- Tray
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Uzunluk
- 20mm
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- REACH Uyumluluk Kodu
- compliant

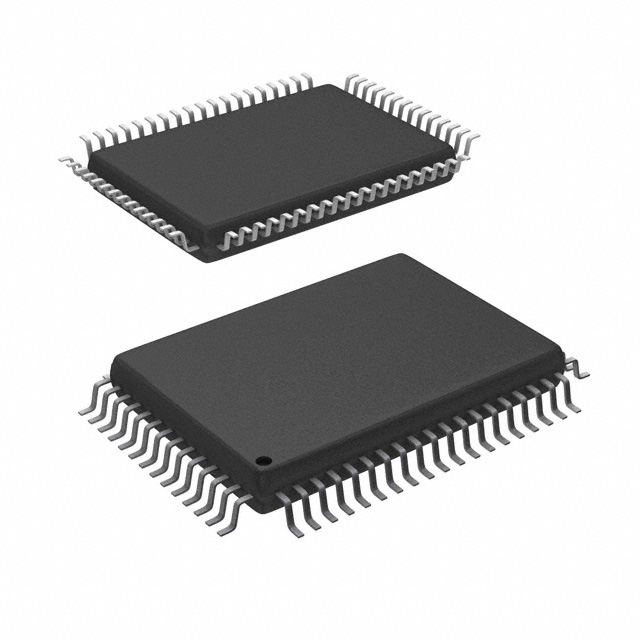

- Kılıf / Paket
- 64-BQFP
