Volume pricing
- 1+ pcs$3.65
- 10+ pcs$3.44
- 100+ pcs$3.24
- 500+ pcs$3.06
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Output Current
- 2.5A
- Ambient Temperature Range High
- 125°C
- Propagation Delay
- 120 ns
- Rise Time
- 25ns
- Tip
- Integrated Circuit (IC)
- Yayın Yılı
- 1996
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Terminal Sayısı
- 16
- Rise Fall Time Typ
- 25ns 17ns
- Ambalaj
- Tube
- Giriş Tipi
- Non-Inverting
- Terminal
- SMD/SMT
- Min Output Voltage
- 10V
- Reference Voltage
- 500V
- Kılıf / Paket

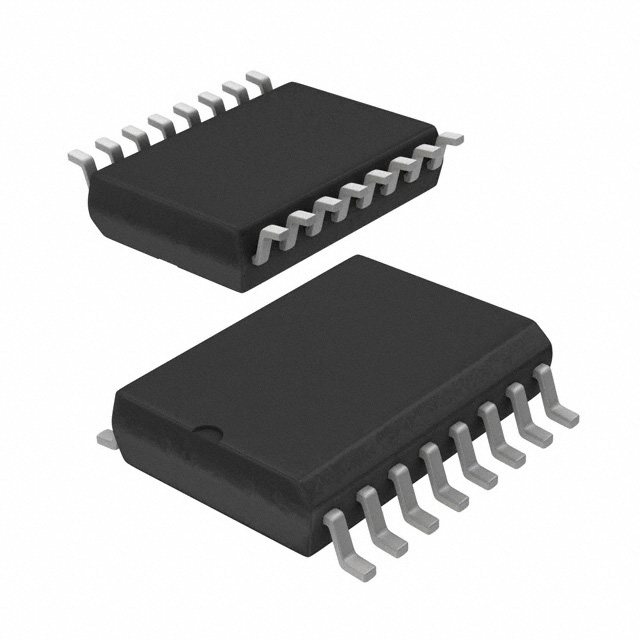

- 16-SOIC (0.295, 7.50mm Width)
- Temel Parça No
- IR2110SPBF
- Pin Sayısı
- 16
- Operating Supply Voltage
- 15V
- Turn On Delay Time
- 120 ns
- Tepe Reflow Sıcaklığı (°C)
- 260
- Logic Voltagevil Vih
- 6V 9.5V
- Power Dissipation
- 1.25W
- Terminal Formu
- GULL WING
- Terminal Pozisyonu
- DUAL
- Terminal Kaplaması
- Matte Tin (Sn)
- Montaj
- Surface Mount
- Uzunluk
- 10.4902mm
- Fonksiyon Sayısı
- 1
- Output Voltage
- 520V
- Kurşunsuz
- Contains Lead, Lead Free
- Current Peak Output Source Sink
- 2A 2A
- Besleme Gerilimi
- 3.3V~20V
- Fall Time Typ
- 17 ns
- Max Output Current
- 2.5mA
- Fabrika Tedarik Süresi
- 12 Weeks
- Parça Durumu
- Active
- Tepe Reflow Süresi (maks. sn)
- 30
- Montaj Tipi
- Surface Mount
- Max Junction Temperature Tj
- 150°C
- ECCN Kodu
- EAR99
