Volume pricing
- 1+ pcs$16.07
- 10+ pcs$15.16
- 100+ pcs$14.30
- 500+ pcs$13.49
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Number Of Elements
- 1
- Reverse Recovery Time
- 350ns
- Parça Durumu
- Active
- Ambalaj
- Tube
- Gate Charge
- 190nC
- Current Collector Pulsed Icm
- 160A

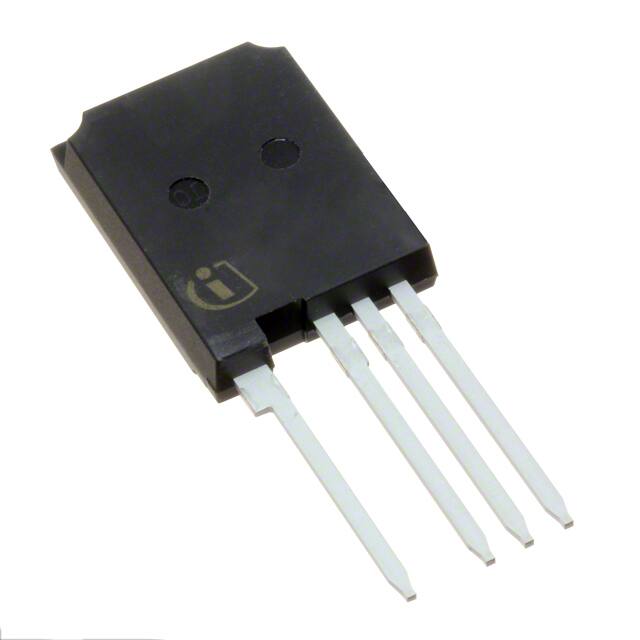

- Kılıf / Paket
- TO-247-4
- Terminal Kaplaması
- Tin (Sn)
- Nem Hassasiyeti (MSL)
- Not Applicable
- Turn Off Timenom Toff
- 439 ns
- Çalışma Sıcaklığı
- -40°C~175°C TJ
- Switching Energy
- 2.18mJ (on), 1.3mJ (off)
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- JESD-609 Kodu
- e3
- Turn On Time
- 61 ns
- ECCN Kodu
- EAR99
- Montaj Tipi
- Through Hole
- Vceon Max Vge Ic
- 2.35V @ 15V, 40A
- Transistor Application
- POWER CONTROL
- Test Conditions
- 600V, 40A, 12 Ω, 15V
- Transistor Element Material
- SILICON
- Jesd30 Code
- R-PSFM-T4
- Fabrika Tedarik Süresi
- 16 Weeks
- Configuration
- SINGLE WITH BUILT-IN DIODE
- Terminal Sayısı
- 4
- Terminal Pozisyonu
- SINGLE
- Currentcollector Ic Max
- 80A
- Power Max
- 500W
- Voltage Collector Emitter Breakdown Max
- 1200V
- Yüzey Montaj
- NO
- Polaritychannel Type
- N-CHANNEL
- Giriş Tipi
- Standard
- RoHS Durumu
- ROHS3 Compliant
- Td Onoff25c
- 30ns/280ns
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
