Volume pricing
- 1+ pcs$8.27
- 10+ pcs$7.80
- 100+ pcs$7.36
- 500+ pcs$6.94
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Td Onoff25c
- 30ns/290ns
- Number Of Elements
- 1
- Kurşunsuz Kodu
- yes
- Element Configuration
- Single
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Gate Charge
- 610nC
- Igbt Type
- Trench Field Stop
- Collector Emitter Voltage Vceo
- 600V
- Montaj Tipi
- Through Hole
- Yayın Yılı
- 2013
- Max Power Dissipation
- 714W
- Transistor Application
- POWER CONTROL
- Parça Durumu
- Not For New Designs
- Power Max
- 714W
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Çalışma Sıcaklığı
- -40°C~175°C TJ
- Current Collector Pulsed Icm
- 400A
- Max Collector Current
- 160A
- ECCN Kodu
- EAR99
- Test Conditions
- 400V, 100A, 3.6 Ω, 15V

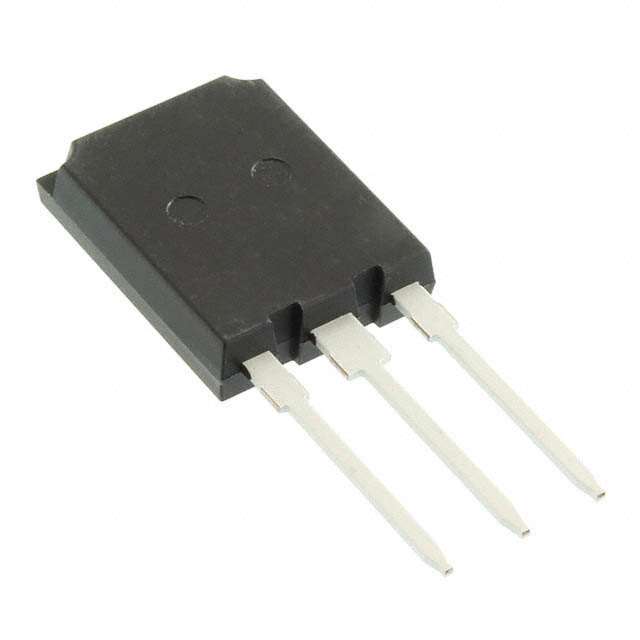

- Kılıf / Paket
- TO-247-3
- Ambalaj
- Tube
- Seri
- Automotive, AEC-Q101, TrenchStop™
- Switching Energy
- 3.1mJ (on), 2.5mJ (off)
- Turn Off Timenom Toff
- 393 ns
- Transistor Element Material
- SILICON
- Fabrika Tedarik Süresi
- 14 Weeks
- Polaritychannel Type
- N-CHANNEL
- Pin Sayısı
- 3
- Turn On Time
- 83 ns
- Montaj
- Through Hole
- Collectoremitter Breakdown Voltage
- 600V
- Reverse Recovery Time
- 225 ns
- RoHS Durumu
- ROHS3 Compliant
- Halogen Free
- Halogen Free
- Vceon Max Vge Ic
- 2V @ 15V, 100A
- Terminal Sayısı
- 3
- Giriş Tipi
- Standard
- Kurşunsuz
- Lead Free
