Volume pricing
- 1+ pcs$3.44
- 10+ pcs$3.25
- 100+ pcs$3.07
- 500+ pcs$2.89
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Gate Charge
- 109nC
- Montaj Tipi
- Through Hole
- Collectoremitter Breakdown Voltage
- 650V
- Max Power Dissipation
- 273W
- Case Connection
- COLLECTOR
- Giriş Tipi
- Standard
- Parça Durumu
- Active
- Transistor Element Material
- SILICON
- Collector Emitter Voltage Vceo
- 650V
- Td Onoff25c
- 20ns/250ns
- Fabrika Tedarik Süresi
- 14 Weeks
- Power Max
- 273W
- Test Conditions
- 400V, 25A, 12 Ω, 15V
- Vceon Max Vge Ic
- 2.1V @ 15V, 50A
- Configuration
- SINGLE
- Igbt Type
- Trench
- Kurşunsuz
- Lead Free
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Halogen Free
- Halogen Free
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Kurşunsuz Kodu
- yes
- Switching Energy
- 410μJ (on), 190μJ (off)
- Montaj
- Through Hole
- Current Collector Pulsed Icm
- 200A
- Transistor Application
- POWER CONTROL
- Polaritychannel Type
- N-CHANNEL
- Pin Sayısı
- 4
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Pozisyonu
- SINGLE
- Ambalaj
- Tube
- JESD-609 Kodu
- e3
- Number Of Elements
- 1
- Yayın Yılı
- 2008
- Seri
- TrenchStop™ 5
- Terminal Sayısı
- 4

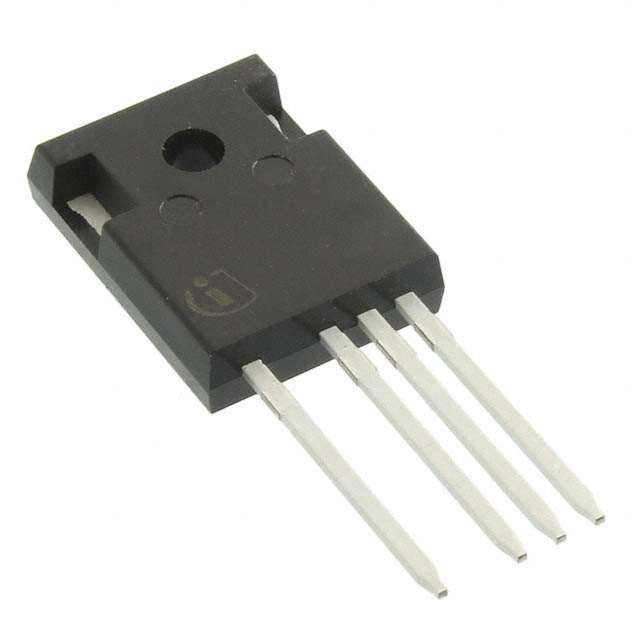

- Kılıf / Paket
- TO-247-4
- RoHS Durumu
- ROHS3 Compliant
- Turn On Time
- 27 ns
- Çalışma Sıcaklığı
- -40°C~175°C TJ
- Terminal Kaplaması
- Tin (Sn)
