Volume pricing
- 1+ pcs$123.49
- 10+ pcs$116.50
- 100+ pcs$109.90
- 500+ pcs$103.68
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Input Capacitance Cies Vce
- 13.5nF @ 25V
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Current Collector Cutoff Max
- 1mA
- Igbt Type
- Trench Field Stop
- Çalışma Sıcaklığı
- -40°C~150°C
- Polaritychannel Type
- N-CHANNEL
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Ntc Thermistor
- Yes
- Transistor Element Material
- SILICON
- Number Of Elements
- 6
- Input
- Standard
- Fabrika Tedarik Süresi
- 12 Weeks
- Yüzey Montaj
- NO
- Terminal Sayısı
- 37
- Currentcollector Ic Max
- 300A
- Voltage Collector Emitter Breakdown Max
- 1700V
- Case Connection
- ISOLATED
- ECCN Kodu
- EAR99
- Vceon Max Vge Ic
- 2.3V @ 15V, 150A
- Parça Durumu
- Active
- Jesd30 Code
- R-XUFM-X37
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- RoHS Durumu
- ROHS3 Compliant
- Kılıf / Paket
- Module
- Montaj Tipi
- Chassis Mount
- Transistor Application
- POWER CONTROL
- Terminal Pozisyonu
- UPPER
- Turn On Time
- 270 ns

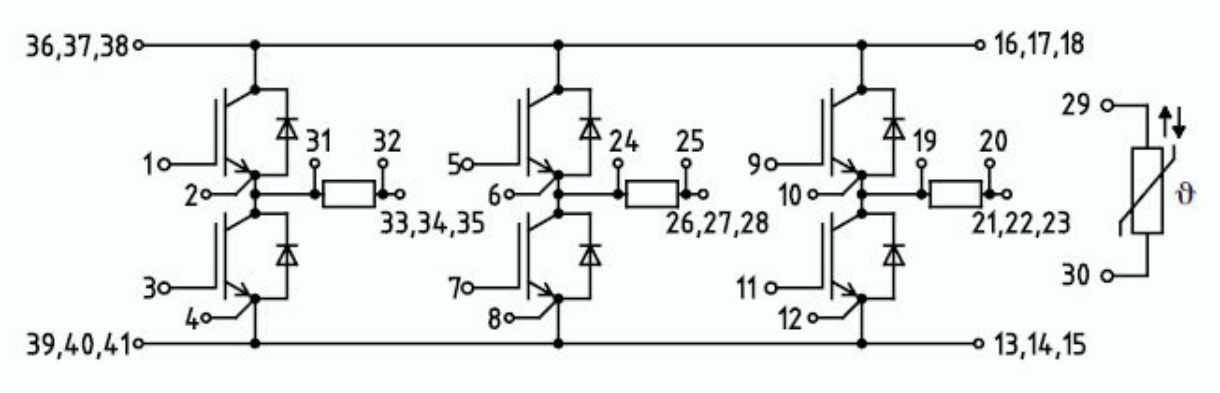

- Configuration
- Full Bridge
- Power Max
- 20mW
- Terminal Formu
- UNSPECIFIED
- Turn Off Timenom Toff
- 760 ns
- Additional Feature
- UL RECOGNIZED
- Yayın Yılı
- 2002
