Volume pricing
- 1+ pcs$1.51
- 10+ pcs$1.43
- 100+ pcs$1.34
- 500+ pcs$1.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- ECCN Kodu
- EAR99
- Number Of Phases
- 1
- Pin Sayısı
- 3
- Terminal Kaplaması
- Tin (Sn)
- Diode Element Material
- SILICON
- RoHS Durumu
- ROHS3 Compliant
- Maks. Çalışma Sıcaklığı
- 175°C
- Current Reverse Leakage Vr
- 40μA @ 650V
- Max Repetitive Reverse Voltage Vrrm
- 650V
- HTS Kodu
- 8541.10.00.80
- Kurşunsuz Kodu
- yes
- Voltage Forward Vf Max If
- 2.2V @ 15A
- JESD-609 Kodu
- e3
- Reverse Recovery Time
- 51 ns
- Peak Reverse Current
- 40μA

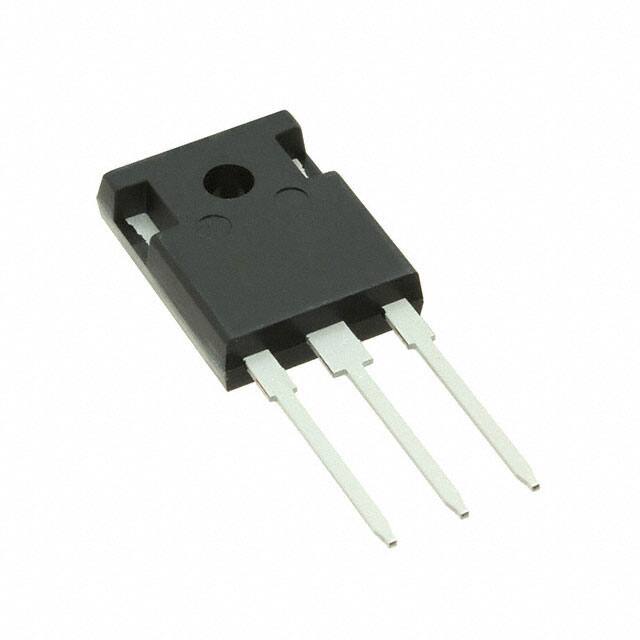

- Kılıf / Paket
- TO-247-3
- Average Rectified Current
- 15A
- Seri
- Rapid 2
- Max Reverse Voltage Dc
- 650V
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Montaj
- Through Hole
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Power Dissipation Max
- 86W
- Terminal Sayısı
- 3
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Montaj Tipi
- Through Hole
- Yayın Yılı
- 2013
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Diode Type
- Standard
- Element Configuration
- Common Cathode
- Diode Configuration
- 1 Pair Common Cathode
- Peak Nonrepetitive Surge Current
- 100A
- Halogen Free
- Halogen Free
- Terminal Pozisyonu
- SINGLE
- Additional Feature
- PD-CASE
- Fabrika Tedarik Süresi
- 16 Weeks
- Forward Current
- 30A
- Operating Temperature Junction
- -40°C~175°C
- Kurşunsuz
- Lead Free
- Number Of Elements
- 2
