Volume pricing
- 1+ pcs$1.39
- 10+ pcs$1.31
- 100+ pcs$1.24
- 500+ pcs$1.17
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Montaj
- Through Hole
- Pin Sayısı
- 3
- Ambalaj
- Tube
- Yayın Yılı
- 2013
- Terminal Pozisyonu
- SINGLE
- ECCN Kodu
- EAR99
- Kurşunsuz
- Lead Free
- JESD-609 Kodu
- e3
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- HTS Kodu
- 8541.10.00.80
- Peak Nonrepetitive Surge Current
- 60A
- Diode Configuration
- 1 Pair Common Cathode
- Additional Feature
- PD-CASE
- Operating Temperature Junction
- -40°C~175°C
- Terminal Sayısı
- 3
- Terminal Kaplaması
- Tin (Sn)
- Peak Reverse Current
- 40μA
- Voltage Forward Vf Max If
- 2.2V @ 10A
- Max Repetitive Reverse Voltage Vrrm
- 650V
- Jedec95 Code
- TO-220AB
- Applications
- FAST SOFT RECOVERY
- Number Of Phases
- 1
- Element Configuration
- Common Cathode
- RoHS Durumu
- ROHS3 Compliant
- Diode Type
- Standard
- Average Rectified Current
- 10A
- Min. Çalışma Sıcaklığı
- -40°C
- Current Reverse Leakage Vr
- 40μA @ 650V
- Forward Current
- 20A
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Seri
- Rapid 2
- Kurşunsuz Kodu
- yes

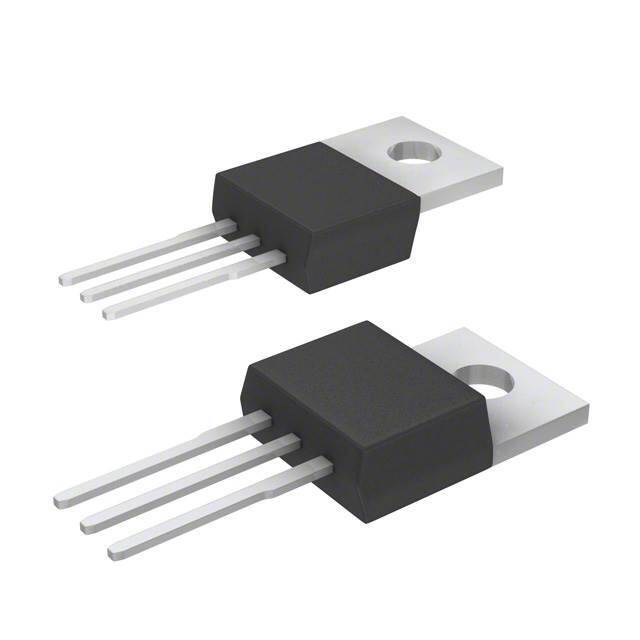

- Kılıf / Paket
- TO-220-3
- Power Dissipation Max
- 68W
- Halogen Free
- Halogen Free
- Maks. Çalışma Sıcaklığı
- 175°C
- Montaj Tipi
- Through Hole
- Diode Element Material
- SILICON
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Reverse Recovery Time
- 50 ns
