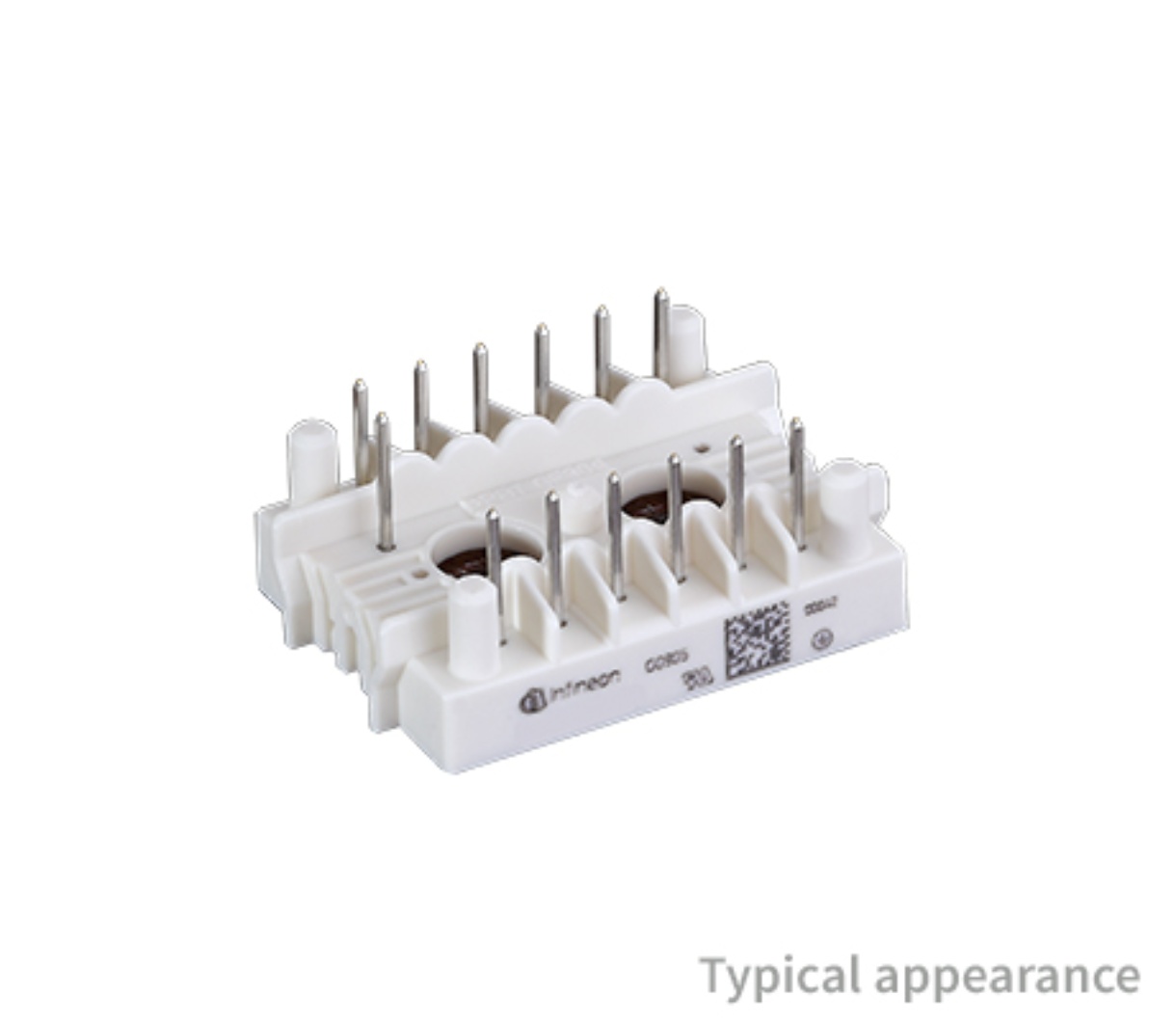

FS6R06VE3B2BOMA1

Specifications

Turn Off Timenom Toff

260 ns

Configuration

Full Bridge

Transistor Element Material

SILICON

Fabrika Tedarik Süresi

32 Weeks

Polaritychannel Type

N-CHANNEL

Collectoremitter Saturation Voltage

2V

Pin Sayısı

750

Input

Standard

Kılıf / Paket

Module

Terminal Formu

UNSPECIFIED

Case Connection

ISOLATED

Vceon Max Vge Ic

2V @ 15V, 6A

Current Collector Cutoff Max

1mA

Ntc Thermistor

Yes

Terminal Sayısı

15

Kurşunsuz

Contains Lead

Turn On Time

26 ns

Montaj

Screw

RoHS Durumu

ROHS3 Compliant

Halogen Free

Not Halogen Free

Jesd30 Code

R-XUFM-X15

Collector Emitter Voltage Vceo

600V

Yayın Yılı

2002

Montaj Tipi

Chassis Mount

Number Of Elements

6

Currentcollector Ic Max

11A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Additional Feature

UL RECOGNIZED

Input Capacitance Cies Vce

330pF @ 25V

Power Dissipation

40.5W

Çalışma Sıcaklığı

-40°C~150°C

Max Collector Current

11A

ECCN Kodu

EAR99

Transistor Application

POWER CONTROL

Parça Durumu

Last Time Buy

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Pozisyonu

UPPER

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
