Volume pricing
- 1+ pcs$23.28
- 10+ pcs$21.96
- 100+ pcs$20.72
- 500+ pcs$19.55
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

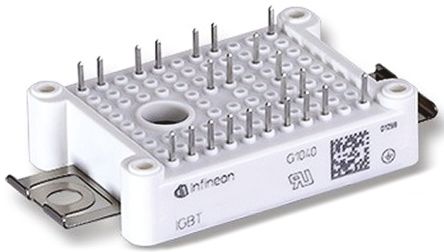

Specifications
- Polaritychannel Type
- N-CHANNEL
- Halogen Free
- Not Halogen Free
- Ntc Thermistor
- Yes
- Kurşunsuz
- Contains Lead
- Igbt Type
- Trench Field Stop
- Input Capacitance Cies Vce
- 2nF @ 25V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Transistor Application
- POWER CONTROL
- Ambalaj
- Bulk
- Voltage Collector Emitter Breakdown Max
- 1200V
- Montaj Tipi
- Chassis Mount
- Yüzey Montaj
- NO
- Transistor Element Material
- SILICON
- Yayın Yılı
- 2013
- ECCN Kodu
- EAR99
- Current Collector Cutoff Max
- 1mA
- Additional Feature
- UL APPROVED
- Terminal Sayısı
- 18
- Terminal Pozisyonu
- UPPER
- Vceon Max Vge Ic
- 2.25V @ 15V, 35A
- Turn Off Timenom Toff
- 520 ns
- Jesd30 Code
- R-XUFM-X18
- Input
- Standard
- RoHS Durumu
- ROHS3 Compliant
- Power Max
- 225W
- Configuration
- Three Phase Inverter
- Kılıf / Paket
- Module
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Parça Durumu
- Active
- Terminal Formu
- UNSPECIFIED
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Number Of Elements
- 6
- Currentcollector Ic Max
- 65A
- Case Connection
- ISOLATED
- Fabrika Tedarik Süresi
- 16 Weeks
- Turn On Time
- 57 ns
- Çalışma Sıcaklığı
- -40°C~150°C
