Volume pricing
- 1+ pcs$25.56
- 10+ pcs$24.11
- 100+ pcs$22.75
- 500+ pcs$21.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

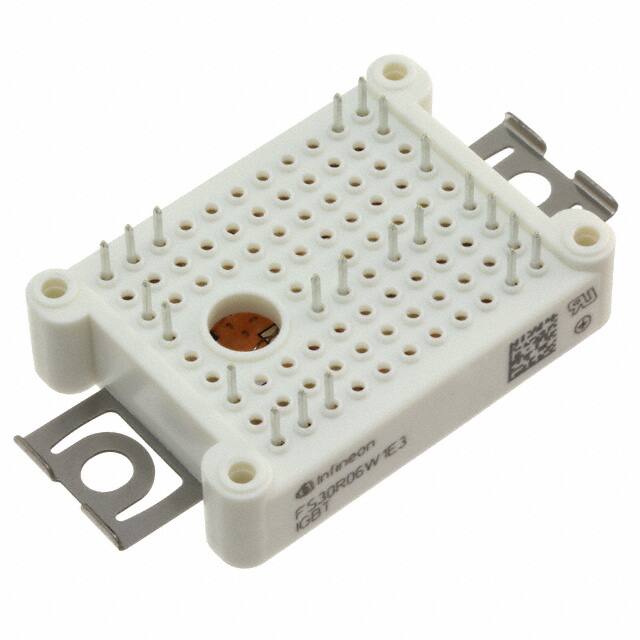

Specifications
- Configuration
- Three Phase Inverter
- Montaj Tipi
- Chassis Mount
- Genişlik
- 33.8mm
- Ntc Thermistor
- Yes
- Collector Emitter Voltage Vceo
- 1.2kV
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Input
- Standard
- Voltage Collector Emitter Breakdown Max
- 1200V
- Polaritychannel Type
- N-CHANNEL
- Pin Sayısı
- 23
- Terminal Formu
- UNSPECIFIED
- Case Connection
- ISOLATED
- Turn On Time
- 80 ns
- Terminal Sayısı
- 23
- Yayın Yılı
- 2002
- Terminal Pozisyonu
- UPPER
- Input Capacitance Cies Vce
- 1.45nF @ 25V
- Transistor Application
- POWER CONTROL
- Max Power Dissipation
- 205W
- Collectoremitter Saturation Voltage
- 1.85V
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Elements
- 6
- Contact Plating
- Tin
- Jesd30 Code
- R-XUFM-X23
- Parça Durumu
- Active
- Kurşunsuz Kodu
- no
- Kılıf / Paket
- Module
- Fabrika Tedarik Süresi
- 16 Weeks
- Current Collector Cutoff Max
- 1mA
- Kurşunsuz
- Lead Free
- Reach Svhc
- No SVHC
- Transistor Element Material
- SILICON
- Qualification Status
- Not Qualified
- Collectoremitter Breakdown Voltage
- 1.2kV
- Montaj
- Screw
- Igbt Type
- Trench Field Stop
- Power Max
- 205W
- Yükseklik
- 12mm
- Max Collector Current
- 45A
