Specifications
- Yayın Yılı
- 2002
- Terminal Pozisyonu
- UPPER
- Transistor Application
- POWER CONTROL
- Input Capacitance Cies Vce
- 18.5nF @ 25V
- Turn On Time
- 350 ns
- Terminal Formu
- UNSPECIFIED
- Case Connection
- ISOLATED
- Terminal Sayısı
- 29
- Number Of Elements
- 6
- Kurşunsuz Kodu
- no
- Parça Durumu
- Not For New Designs
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Montaj Tipi
- Chassis Mount

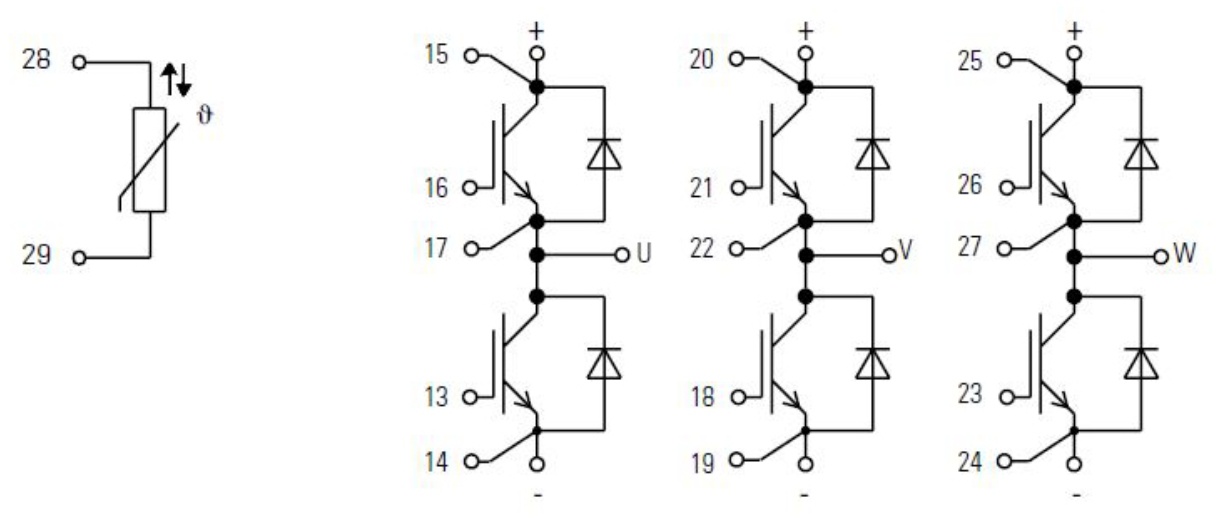

- Configuration
- Three Phase Inverter
- Voltage Collector Emitter Breakdown Max
- 1700V
- Çalışma Sıcaklığı
- -40°C~150°C
- Input
- Standard
- Pin Sayısı
- 29
- Polaritychannel Type
- N-CHANNEL
- Ntc Thermistor
- Yes
- Collector Emitter Voltage Vceo
- 1.7kV
- Vceon Max Vge Ic
- 2.3V @ 15V, 225A
- Max Collector Current
- 340A
- ECCN Kodu
- EAR99
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Turn Off Timenom Toff
- 1500 ns
- Pin Sayısı
- 29
- RoHS Durumu
- ROHS3 Compliant
- Transistor Element Material
- SILICON
- Kılıf / Paket
- Module
- Current Collector Cutoff Max
- 3mA
- Kurşunsuz
- Contains Lead
- Power Max
- 1500W
- Halogen Free
- Not Halogen Free
- Igbt Type
- Trench Field Stop
- Seri
- EconoPACK™+
- Qualification Status
- Not Qualified
- Montaj
- Screw
