Volume pricing
- 1+ pcs$16.43
- 10+ pcs$15.50
- 100+ pcs$14.62
- 500+ pcs$13.79
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Turn On Time
- 57 ns
- Çalışma Sıcaklığı
- -40°C~150°C
- Currentcollector Ic Max
- 35A
- Case Connection
- ISOLATED
- Fabrika Tedarik Süresi
- 16 Weeks
- Number Of Elements
- 6
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Seri
- EasyPACK™ 1B
- Pin Sayısı
- 18
- Terminal Formu
- UNSPECIFIED
- Kılıf / Paket
- Module
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Parça Durumu
- Active

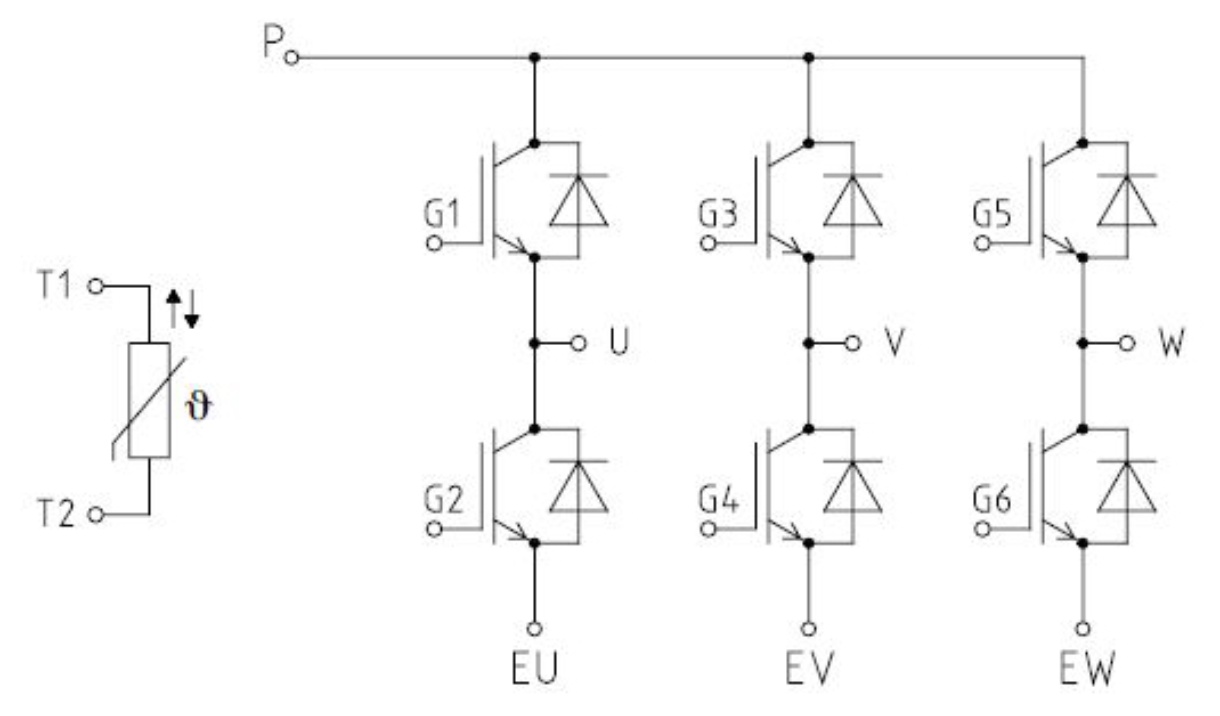

- Configuration
- Full Bridge
- Power Max
- 135W
- RoHS Durumu
- ROHS3 Compliant
- Input
- Standard
- Terminal Pozisyonu
- UPPER
- Terminal Sayısı
- 18
- Turn Off Timenom Toff
- 320 ns
- Vceon Max Vge Ic
- 2V @ 15V, 20A
- Additional Feature
- UL APPROVED
- Transistor Element Material
- SILICON
- ECCN Kodu
- EAR99
- Yayın Yılı
- 2002
- Current Collector Cutoff Max
- 1mA
- Max Collector Current
- 35A
- Montaj Tipi
- Chassis Mount
- Collector Emitter Voltage Vceo
- 600V
- Ambalaj
- Bulk
- Input Capacitance Cies Vce
- 1.1nF @ 25V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Transistor Application
- POWER CONTROL
- Igbt Type
- Trench Field Stop
- Ntc Thermistor
- Yes
- Montaj
- Screw
- Kurşunsuz
- Contains Lead
- Halogen Free
- Not Halogen Free
- Polaritychannel Type
- N-CHANNEL
