Volume pricing
- 1+ pcs$102.79
- 10+ pcs$96.97
- 100+ pcs$91.48
- 500+ pcs$86.31
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Montaj
- PCB
- Fabrika Tedarik Süresi
- 26 Weeks
- Yayın Yılı
- 2002
- ECCN Kodu
- EAR99
- Jesd30 Code
- R-XUFM-X13
- Igbt Type
- Trench Field Stop
- Power Max
- 600W
- Vceon Max Vge Ic
- 2.3V @ 15V, 100A
- Case Connection
- ISOLATED
- Transistor Application
- POWER CONTROL
- Terminal Pozisyonu
- UPPER
- Montaj Tipi
- Chassis Mount
- Genişlik
- 70.6mm
- Kılıf / Paket
- Module
- Uzunluk
- 130mm
- Transistor Element Material
- SILICON
- Terminal Formu
- UNSPECIFIED
- Current Collector Cutoff Max
- 1mA
- Qualification Status
- Not Qualified
- Pin Sayısı
- 4
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Ntc Thermistor
- Yes
- Halogen Free
- Not Halogen Free
- Yükseklik
- 17mm
- Kurşunsuz Kodu
- no
- Input
- Standard
- Turn On Time
- 280 ns

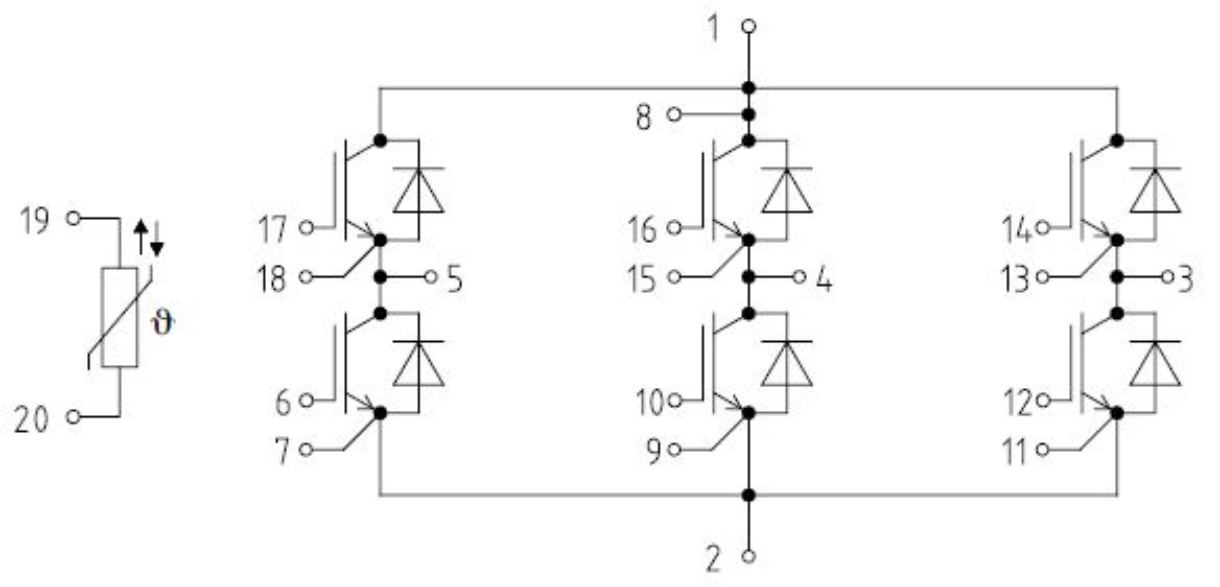

- Configuration
- Three Phase Inverter
- Çalışma Sıcaklığı
- -40°C~150°C
- Parça Durumu
- Active
- Polaritychannel Type
- N-CHANNEL
- Number Of Elements
- 6
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Max Collector Current
- 100A
- Terminal Sayısı
- 13
- Turn Off Timenom Toff
- 1240 ns
- Kurşunsuz
- Contains Lead
- Pin Sayısı
- 20
- Input Capacitance Cies Vce
- 9nF @ 25V
- Voltage Collector Emitter Breakdown Max
- 1700V
