Volume pricing
- 1+ pcs$120.54
- 10+ pcs$113.71
- 100+ pcs$107.28
- 500+ pcs$101.21
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Input
- Standard
- Kurşunsuz Kodu
- no
- Turn On Time
- 165 ns
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -40°C~150°C

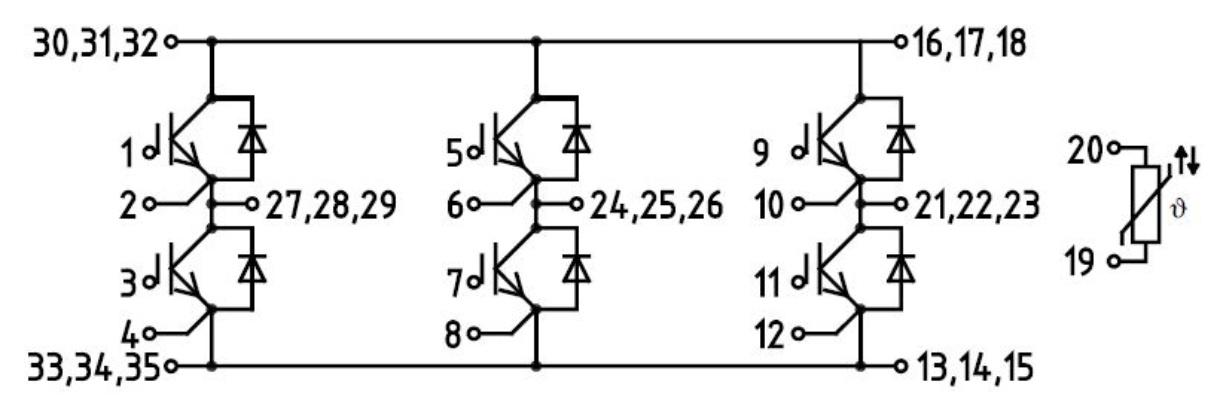

- Configuration
- Three Phase Inverter
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Polaritychannel Type
- N-CHANNEL
- Number Of Elements
- 6
- Terminal Sayısı
- 35
- Turn Off Timenom Toff
- 570 ns
- Voltage Collector Emitter Breakdown Max
- 1200V
- Input Capacitance Cies Vce
- 6.3nF @ 25V
- Kurşunsuz
- Contains Lead
- Pin Sayısı
- 35
- Nem Hassasiyeti (MSL)
- Not Applicable
- RoHS Durumu
- RoHS Compliant
- Current Collector Cutoff Max
- 1mA
- Qualification Status
- Not Qualified
- Yüzey Montaj
- NO
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Ntc Thermistor
- Yes
- Halogen Free
- Not Halogen Free
- Terminal Pozisyonu
- UPPER
- Montaj Tipi
- Chassis Mount
- Kılıf / Paket
- Module
- Transistor Element Material
- SILICON
- Terminal Formu
- UNSPECIFIED
- Fabrika Tedarik Süresi
- 16 Weeks
- Yayın Yılı
- 2002
- ECCN Kodu
- EAR99
- Jesd30 Code
- R-XUFM-X35
- Igbt Type
- Trench Field Stop
- Power Max
- 515W
- Case Connection
- ISOLATED
- Currentcollector Ic Max
- 100A
- Vceon Max Vge Ic
- 2.2V @ 15V, 100A
