Volume pricing
- 1+ pcs$117.01
- 10+ pcs$110.39
- 100+ pcs$104.14
- 500+ pcs$98.25
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Pin Sayısı
- 4
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Ntc Thermistor
- Yes
- Halogen Free
- Not Halogen Free
- Yükseklik
- 17mm
- Current Collector Cutoff Max
- 1mA
- Terminal Sayısı
- 20
- Turn Off Timenom Toff
- 610 ns
- Pin Sayısı
- 20
- Kurşunsuz
- Contains Lead
- Input Capacitance Cies Vce
- 6.2nF @ 25V
- Max Power Dissipation
- 335W
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Collector Emitter Voltage Vceo
- 650V
- RoHS Durumu
- RoHS Compliant
- Kurşunsuz Kodu
- no
- Input
- Standard
- Turn On Time
- 110 ns

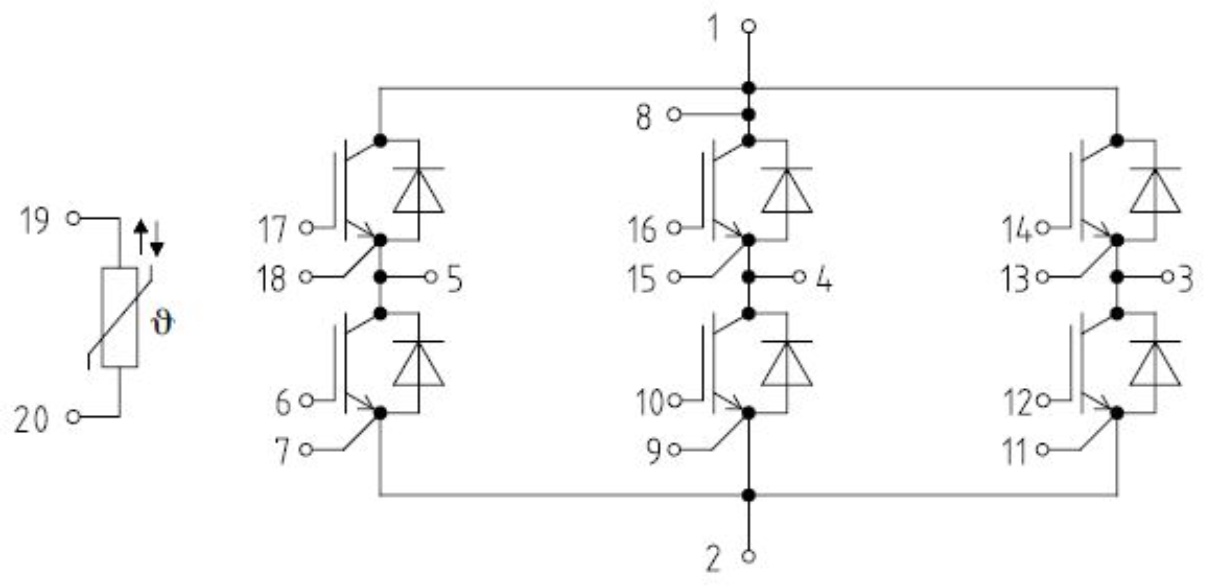

- Configuration
- Three Phase Inverter
- Çalışma Sıcaklığı
- -40°C~150°C
- Parça Durumu
- Active
- Number Of Elements
- 6
- Polaritychannel Type
- N-CHANNEL
- Max Collector Current
- 100A
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- ECCN Kodu
- EAR99
- Jesd30 Code
- R-XUFM-X20
- Igbt Type
- Trench Field Stop
- Vceon Max Vge Ic
- 1.95V @ 15V, 100A
- Currentcollector Ic Max
- 100A
- Case Connection
- ISOLATED
- Montaj
- PCB
- Yayın Yılı
- 2002
- Fabrika Tedarik Süresi
- 16 Weeks
- Montaj Tipi
- Chassis Mount
- Genişlik
- 70.6mm
- Kılıf / Paket
- Module
- Uzunluk
- 130mm
- Terminal Formu
- UNSPECIFIED
- Transistor Element Material
- SILICON
