Volume pricing
- 1+ pcs$94.42
- 10+ pcs$89.08
- 100+ pcs$84.03
- 500+ pcs$79.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

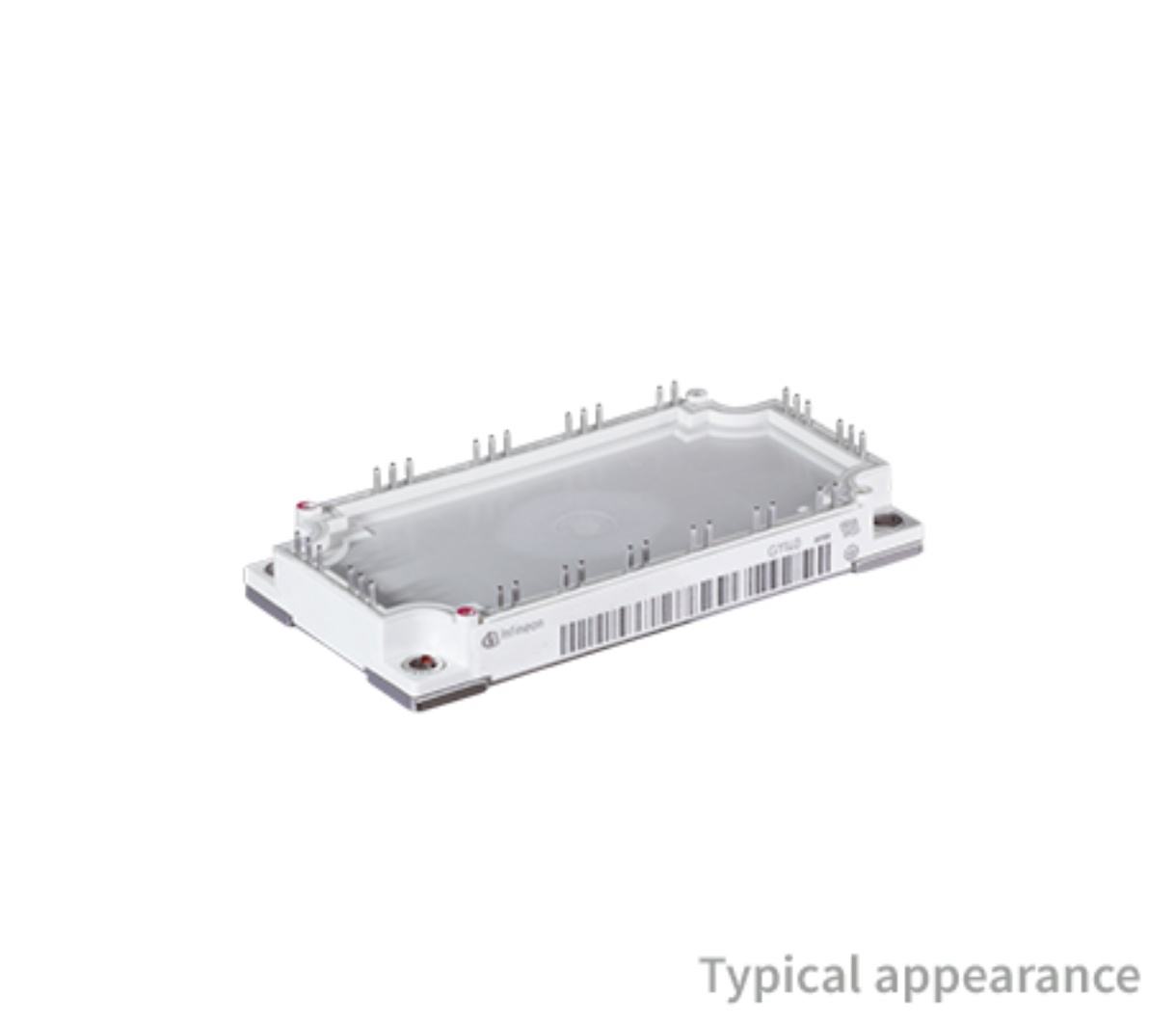

Specifications
- Turn Off Timenom Toff
- 620 ns
- Vceon Max Vge Ic
- 2.25V @ 15V, 75A
- Terminal Sayısı
- 35
- Terminal Pozisyonu
- UPPER
- Current Collector Cutoff Max
- 1mA
- Transistor Element Material
- SILICON
- ECCN Kodu
- EAR99
- Yayın Yılı
- 2002
- Yüzey Montaj
- NO
- Kurşunsuz Kodu
- no
- Montaj Tipi
- Chassis Mount
- Voltage Collector Emitter Breakdown Max
- 1200V
- Nem Hassasiyeti (MSL)
- Not Applicable
- Input Capacitance Cies Vce
- 4.3nF @ 25V
- Igbt Type
- Trench Field Stop
- Kurşunsuz
- Contains Lead
- Qualification Status
- Not Qualified
- Ntc Thermistor
- Yes
- Halogen Free
- Not Halogen Free
- Polaritychannel Type
- N-CHANNEL
- Çalışma Sıcaklığı
- -40°C~150°C
- Turn On Time
- 210 ns
- Fabrika Tedarik Süresi
- 12 Weeks
- Case Connection
- ISOLATED
- Currentcollector Ic Max
- 75A
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Number Of Elements
- 7
- Terminal Formu
- UNSPECIFIED
- Pin Sayısı
- 35
- Parça Durumu
- Active
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Kılıf / Paket
- Module
- Configuration
- Three Phase Inverter
- Power Max
- 385W
- RoHS Durumu
- RoHS Compliant
- Input
- Standard
- Jesd30 Code
- R-XUFM-X35
