Volume pricing
- 1+ pcs$44.64
- 10+ pcs$42.11
- 100+ pcs$39.73
- 500+ pcs$37.48
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

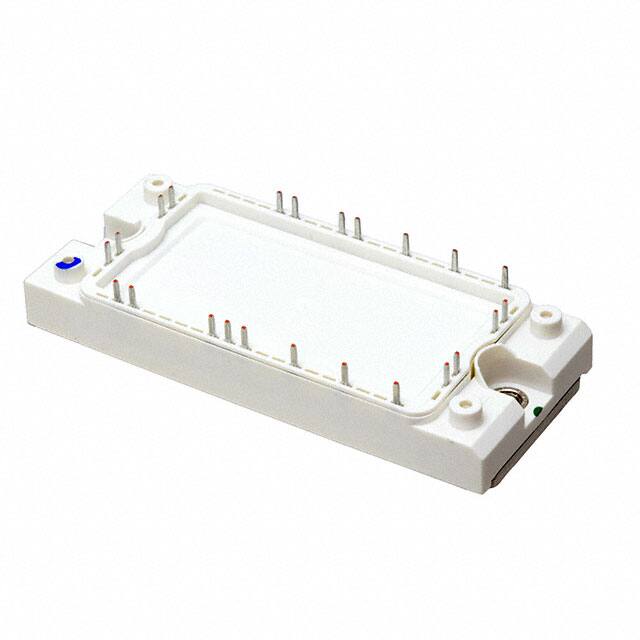

Specifications
- Yüzey Montaj
- NO
- Current Collector Cutoff Max
- 1mA
- Transistor Element Material
- SILICON
- ECCN Kodu
- EAR99
- Yayın Yılı
- 2002
- Vceon Max Vge Ic
- 2.25V @ 15V, 50A
- Turn Off Timenom Toff
- 620 ns
- Terminal Sayısı
- 23
- Terminal Pozisyonu
- UPPER
- Nem Hassasiyeti (MSL)
- Not Applicable
- Input Capacitance Cies Vce
- 2.8nF @ 25V
- Voltage Collector Emitter Breakdown Max
- 1200V
- Kurşunsuz Kodu
- no
- Montaj Tipi
- Chassis Mount
- Kurşunsuz
- Contains Lead
- Qualification Status
- Not Qualified
- Ntc Thermistor
- Yes
- Igbt Type
- Trench Field Stop
- Polaritychannel Type
- N-CHANNEL
- Halogen Free
- Not Halogen Free
- Number Of Elements
- 7
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Fabrika Tedarik Süresi
- 12 Weeks
- Case Connection
- ISOLATED
- Currentcollector Ic Max
- 50A
- Çalışma Sıcaklığı
- -40°C~150°C
- Turn On Time
- 210 ns
- Terminal Formu
- UNSPECIFIED
- Configuration
- Three Phase Inverter
- Pin Sayısı
- 23
- Parça Durumu
- Active
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Kılıf / Paket
- Module
- RoHS Durumu
- RoHS Compliant
- Input
- Standard
- Jesd30 Code
- R-XUFM-X23
- Power Max
- 280W
