Volume pricing
- 1+ pcs$68.83
- 10+ pcs$64.93
- 100+ pcs$61.26
- 500+ pcs$57.79
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

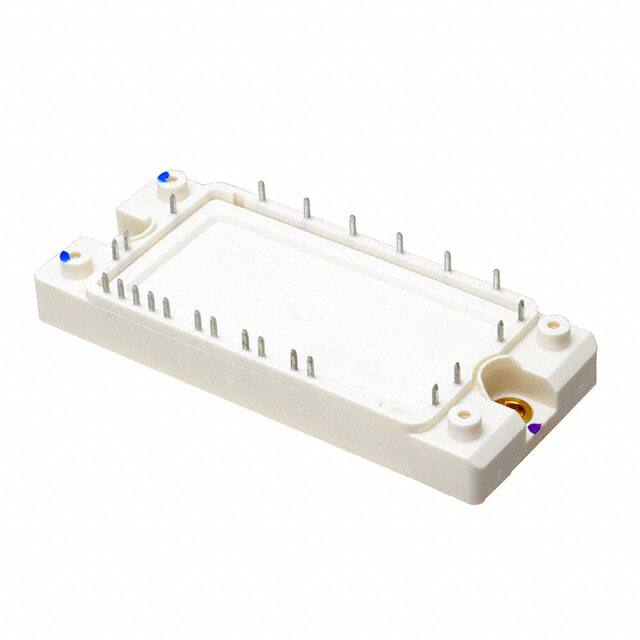

Specifications
- Igbt Type
- Trench Field Stop
- Turn Off Timenom Toff
- 610 ns
- Terminal Formu
- WIRE
- Ntc Thermistor
- Yes
- Transistor Element Material
- SILICON
- Vceon Max Vge Ic
- 2.3V @ 15V, 40A
- Voltage Collector Emitter Breakdown Max
- 1200V
- ECCN Kodu
- EAR99
- Yüzey Montaj
- NO
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Input Capacitance Cies Vce
- 2.5nF @ 25V
- Pin Sayısı
- 24
- Currentcollector Ic Max
- 55A
- Kurşunsuz Kodu
- no
- Montaj Tipi
- Chassis Mount
- Polarity
- NPN
- Configuration
- Three Phase Inverter
- Current Collector Cutoff Max
- 1mA
- Fabrika Tedarik Süresi
- 14 Weeks
- Power Max
- 210W
- Terminal Pozisyonu
- UPPER
- Halogen Free
- Not Halogen Free
- Terminal Sayısı
- 24
- Transistor Application
- POWER CONTROL
- RoHS Durumu
- RoHS Compliant
- Number Of Elements
- 7
- Kılıf / Paket
- Module
- Turn On Time
- 140 ns
- Case Connection
- ISOLATED
- Çalışma Sıcaklığı
- -40°C~125°C
- Pin Sayısı
- 24
- Parça Durumu
- Active
- Kurşunsuz
- Contains Lead
- Nem Hassasiyeti (MSL)
- Not Applicable
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Forward Current
- 40A
- Power Dissipation
- 200W
- Qualification Status
- Not Qualified
- Yayın Yılı
- 2013
- Input
- Standard
