Specifications
- Yayın Yılı
- 2002
- Input
- Standard
- Nem Hassasiyeti (MSL)
- Not Applicable
- Ambalaj
- Bulk
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Kurşunsuz
- Contains Lead
- Çalışma Sıcaklığı
- -40°C~150°C
- Parça Durumu
- Active
- Turn On Time
- 42 ns
- Kılıf / Paket
- Module
- Case Connection
- ISOLATED
- RoHS Durumu
- RoHS Compliant
- Collector Emitter Voltage Vceo
- 600V
- Number Of Elements
- 7
- Halogen Free
- Not Halogen Free
- Terminal Sayısı
- 23
- Transistor Application
- POWER CONTROL
- Fabrika Tedarik Süresi
- 16 Weeks
- Terminal Pozisyonu
- UPPER
- Power Max
- 115W
- Montaj
- Screw
- Currentcollector Ic Max
- 37A
- Montaj Tipi
- Chassis Mount

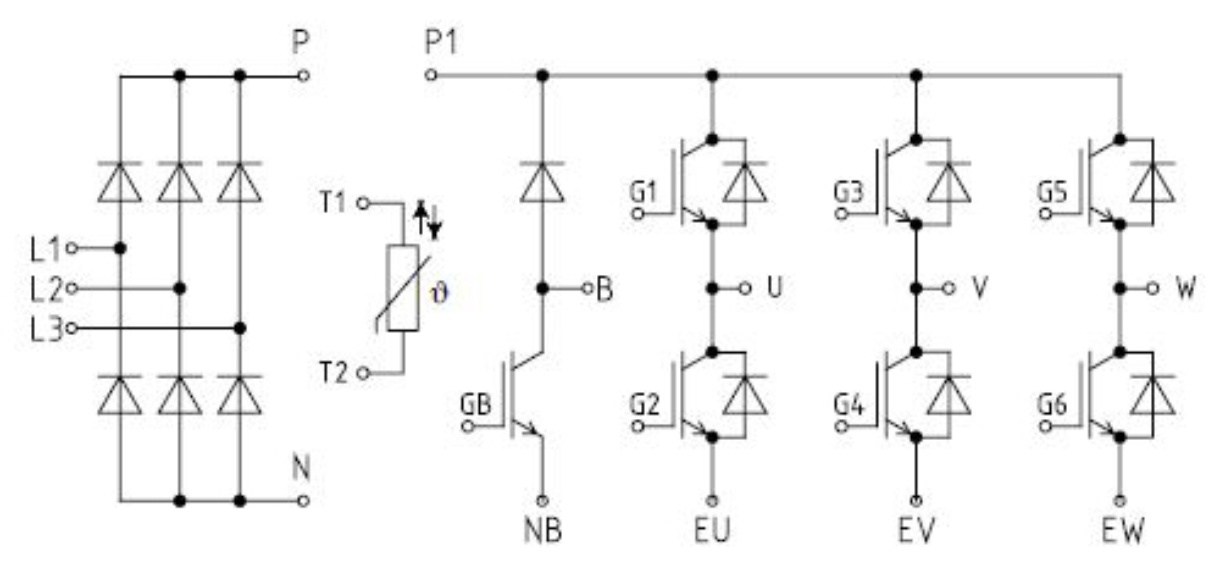

- Configuration
- Three Phase Inverter
- Current Collector Cutoff Max
- 1mA
- Input Capacitance Cies Vce
- 1.65nF @ 25V
- Pin Sayısı
- 23
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Additional Feature
- UL APPROVED
- ECCN Kodu
- EAR99
- Ntc Thermistor
- Yes
- Transistor Element Material
- SILICON
- Vceon Max Vge Ic
- 2V @ 15V, 30A
- Terminal Formu
- UNSPECIFIED
- Max Collector Current
- 37A
- Polaritychannel Type
- N-CHANNEL
- Igbt Type
- Trench Field Stop
- Turn Off Timenom Toff
- 245 ns
