Volume pricing
- 1+ pcs$30.81
- 10+ pcs$29.06
- 100+ pcs$27.42
- 500+ pcs$25.87
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Jesd30 Code
- R-XUFM-X23
- Yayın Yılı
- 2002
- Turn On Time
- 108 ns
- Vceon Max Vge Ic
- 2.25V @ 15V, 10A
- Polaritychannel Type
- N-CHANNEL
- Çalışma Sıcaklığı
- -40°C~150°C
- Turn Off Timenom Toff
- 500 ns
- Case Connection
- ISOLATED
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Igbt Type
- Trench Field Stop
- RoHS Durumu
- ROHS3 Compliant
- Seri
- EasyPIM™ 1B
- Parça Durumu
- Active
- Montaj Tipi
- Chassis Mount
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Current Collector Cutoff Max
- 1mA

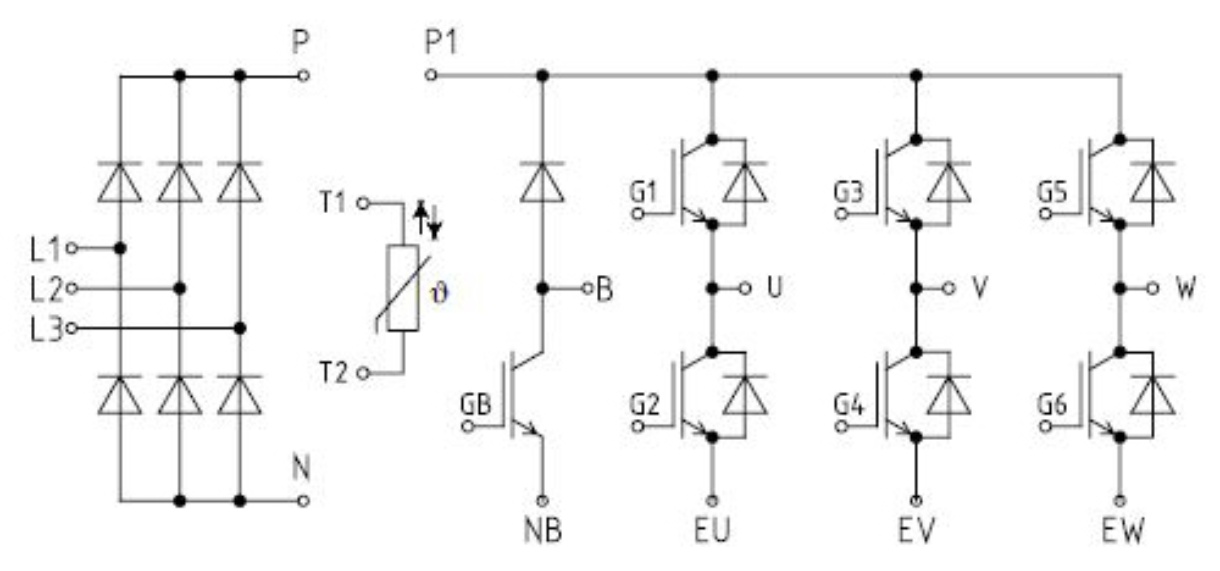

- Configuration
- Three Phase Inverter
- Yüzey Montaj
- NO
- Terminal Pozisyonu
- UPPER
- Transistor Element Material
- SILICON
- Input Capacitance Cies Vce
- 600pF @ 25V
- Terminal Sayısı
- 23
- Kılıf / Paket
- Module
- Transistor Application
- POWER CONTROL
- Number Of Elements
- 7
- Ntc Thermistor
- Yes
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Power Max
- 20mW
- Input
- Three Phase Bridge Rectifier
- Terminal Formu
- UNSPECIFIED
- Voltage Collector Emitter Breakdown Max
- 1200V
- Currentcollector Ic Max
- 20A
- Fabrika Tedarik Süresi
- 16 Weeks
- ECCN Kodu
- EAR99
