Volume pricing
- 1+ pcs$483.08
- 10+ pcs$455.74
- 100+ pcs$429.94
- 500+ pcs$405.61
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Turn On Time
- 350 ns
- Vceon Max Vge Ic
- 2.1V @ 15V, 900A
- Yayın Yılı
- 2002
- Jesd30 Code
- R-PUFM-X10
- Çalışma Sıcaklığı
- -40°C~150°C
- Turn Off Timenom Toff
- 940 ns
- Polaritychannel Type
- N-CHANNEL
- Igbt Type
- Trench Field Stop
- RoHS Durumu
- ROHS3 Compliant
- Case Connection
- ISOLATED
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Current Collector Cutoff Max
- 5mA
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED

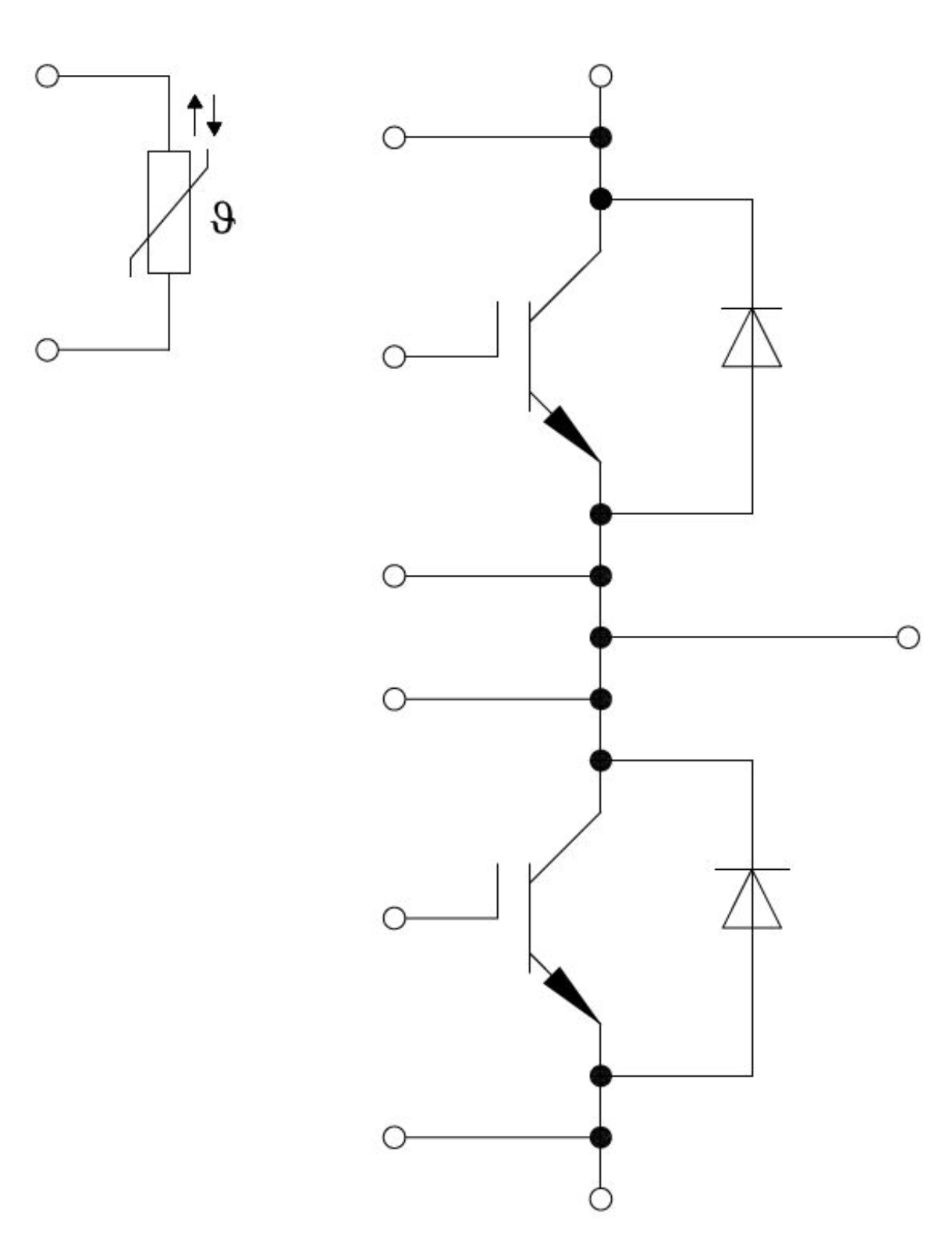

- Configuration
- Half Bridge
- Montaj Tipi
- Chassis Mount
- Seri
- PrimePack™2
- Parça Durumu
- Active
- Additional Feature
- UL APPROVED
- Terminal Sayısı
- 10
- Input Capacitance Cies Vce
- 54nF @ 25V
- Yüzey Montaj
- NO
- Terminal Pozisyonu
- UPPER
- Transistor Element Material
- SILICON
- Number Of Elements
- 2
- Ntc Thermistor
- Yes
- Transistor Application
- POWER CONTROL
- Kılıf / Paket
- Module
- Input
- Standard
- Terminal Formu
- UNSPECIFIED
- Voltage Collector Emitter Breakdown Max
- 1200V
- Power Max
- 20mW
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- ECCN Kodu
- EAR99
- Currentcollector Ic Max
- 900A
