Volume pricing
- 1+ pcs$75.73
- 10+ pcs$71.44
- 100+ pcs$67.40
- 500+ pcs$63.59
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Voltage Collector Emitter Breakdown Max
- 1200V
- Terminal Formu
- UNSPECIFIED
- Parça Durumu
- Active
- Turn Off Timenom Toff
- 600 ns
- Terminal Pozisyonu
- UPPER
- Igbt Type
- Trench Field Stop
- Transistor Element Material
- SILICON
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Power Max
- 20mW
- Fabrika Tedarik Süresi
- 16 Weeks
- Input
- Standard
- Montaj Tipi
- Chassis Mount
- Input Capacitance Cies Vce
- 13nF @ 25V
- Terminal Sayısı
- 11
- Seri
- EconoDUAL™ 3
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Turn On Time
- 220 ns
- Currentcollector Ic Max
- 450A
- Ntc Thermistor
- Yes
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Vceon Max Vge Ic
- 2.15V @ 15V, 225A
- Polaritychannel Type
- N-CHANNEL
- ECCN Kodu
- EAR99
- Kılıf / Paket
- Module
- Çalışma Sıcaklığı
- -40°C~150°C
- Yüzey Montaj
- NO

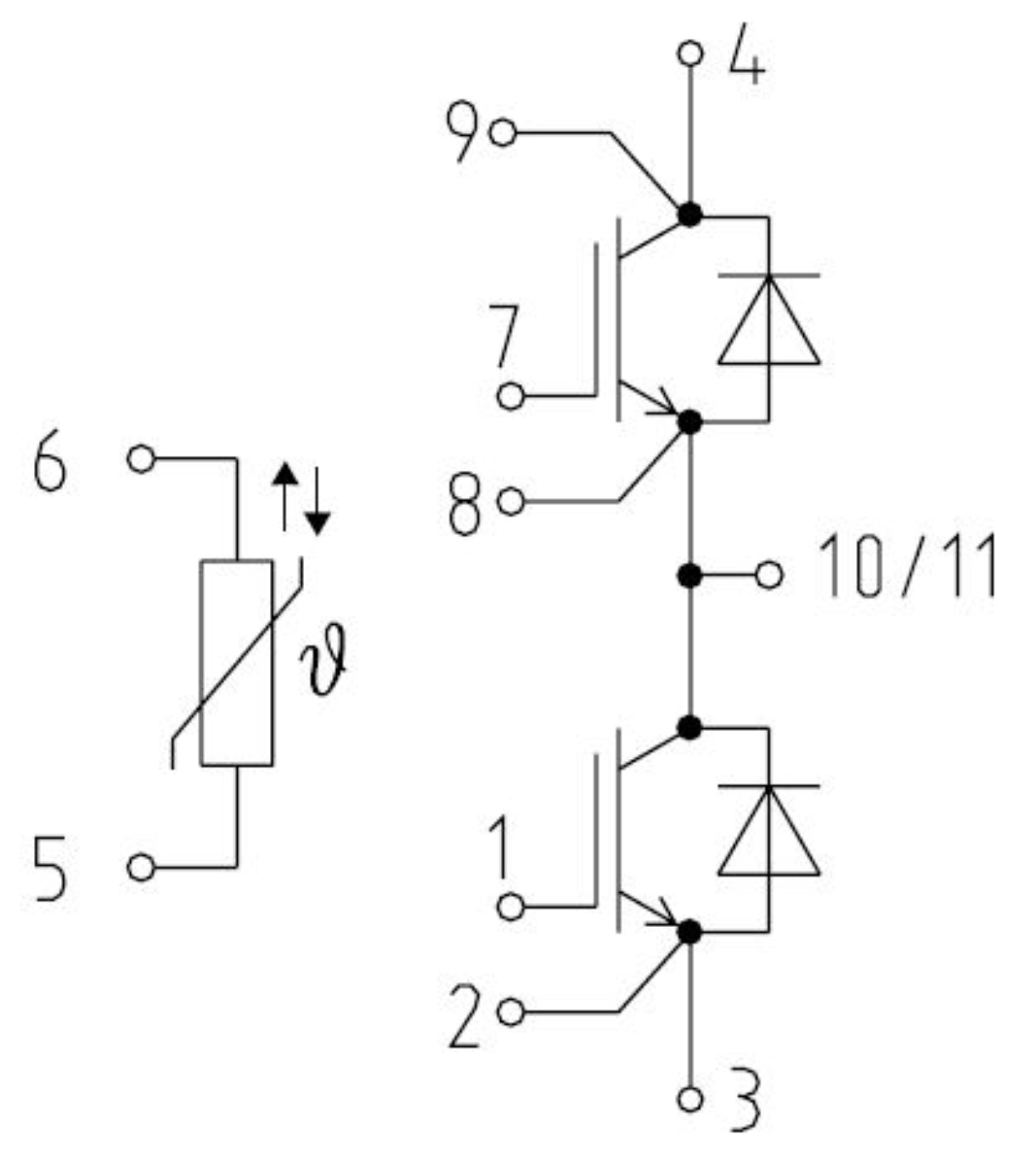

- Configuration
- Half Bridge
- Case Connection
- ISOLATED
- Yayın Yılı
- 2002
- Current Collector Cutoff Max
- 3mA
- RoHS Durumu
- ROHS3 Compliant
- Jesd30 Code
- R-XUFM-X11
- Number Of Elements
- 2
