Specifications
- Montaj Tipi
- Chassis Mount
- Polaritychannel Type
- N-CHANNEL
- Seri
- PrimePACK™3+
- Input Capacitance Cies Vce
- 105nF @ 25V
- Vceon Max Vge Ic
- 2.2V @ 15V, 1800A
- Yayın Yılı
- 2002
- Input
- Standard
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 52 Weeks
- Power Max
- 1800000W
- RoHS Durumu
- ROHS3 Compliant
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Transistor Element Material
- SILICON
- Kılıf / Paket
- Module
- ECCN Kodu
- EAR99
- Voltage Collector Emitter Breakdown Max
- 1700V

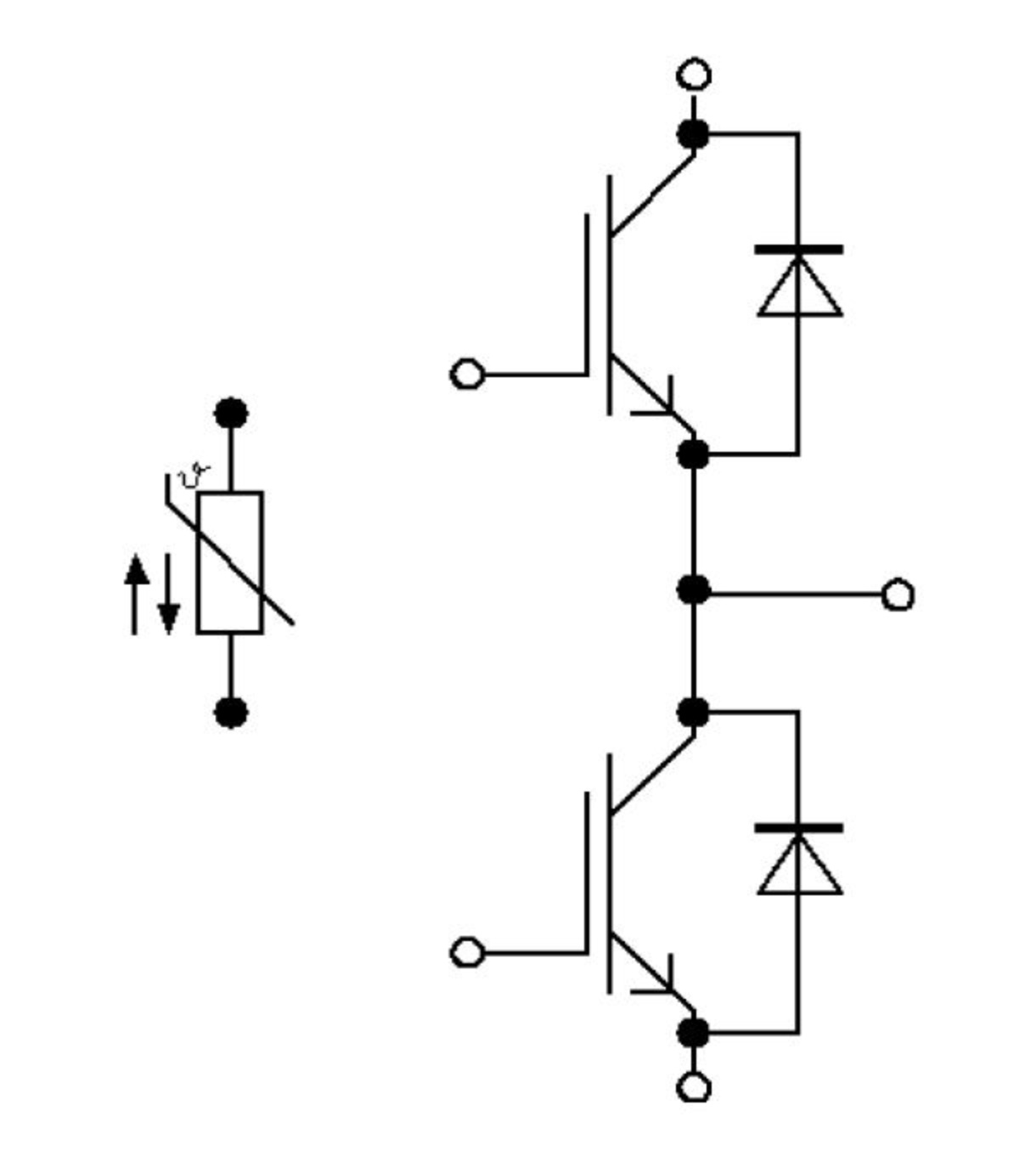

- Configuration
- Half Bridge
- Turn Off Timenom Toff
- 1060 ns
- Case Connection
- ISOLATED
- Current Collector Cutoff Max
- 5mA
- Number Of Elements
- 2
- Transistor Application
- POWER CONTROL
- Çalışma Sıcaklığı
- -40°C~175°C
- Terminal Pozisyonu
- UPPER
- Terminal Sayısı
- 14
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Currentcollector Ic Max
- 3600A
- Yüzey Montaj
- NO
- Jesd30 Code
- R-PUFM-X14
- Ntc Thermistor
- Yes
- Igbt Type
- Trench Field Stop
- Turn On Time
- 530 ns
- Terminal Formu
- UNSPECIFIED
